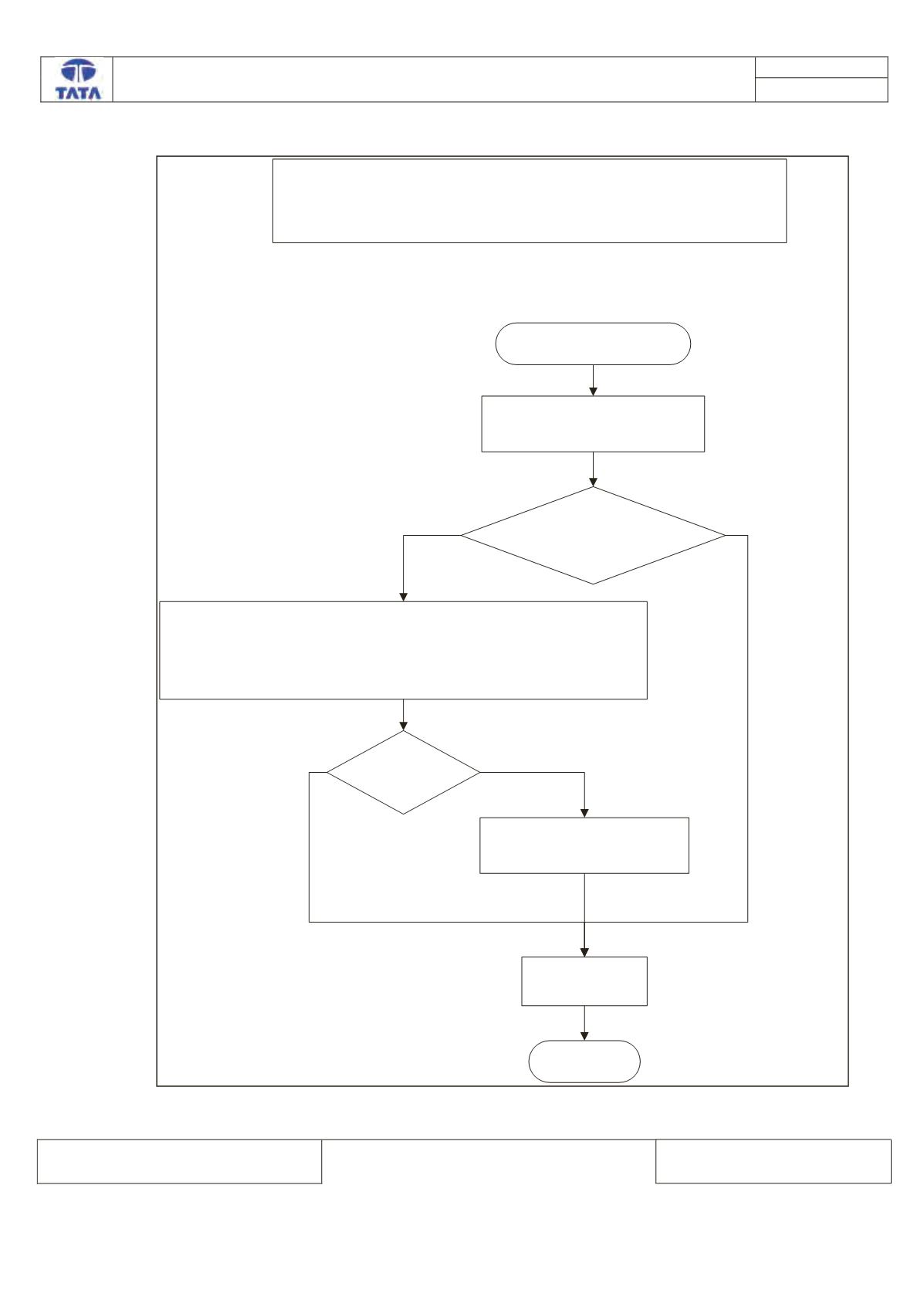

Trouble Shooting:-
Start
Read IVN DTCs in ECM
Is MTO logged against
IPC in current state?
No (In history)
Check continuity between
ECM CAN_H (C1 pin no. 132) to IPC CAN_H(pin no. 6)
and
ECM CAN_L (C1 pin no. 144) to IPC CAN_L(pin no. 5)
in vehicle wiring side connector.
Is continuity
there?
Repair the wiring harness
Clear DTC
Stop
Yes
Yes
No
U0155-31 Loss of communication with Instrument
Panel Cluster Module- Bus Signals/ Message
Failures
