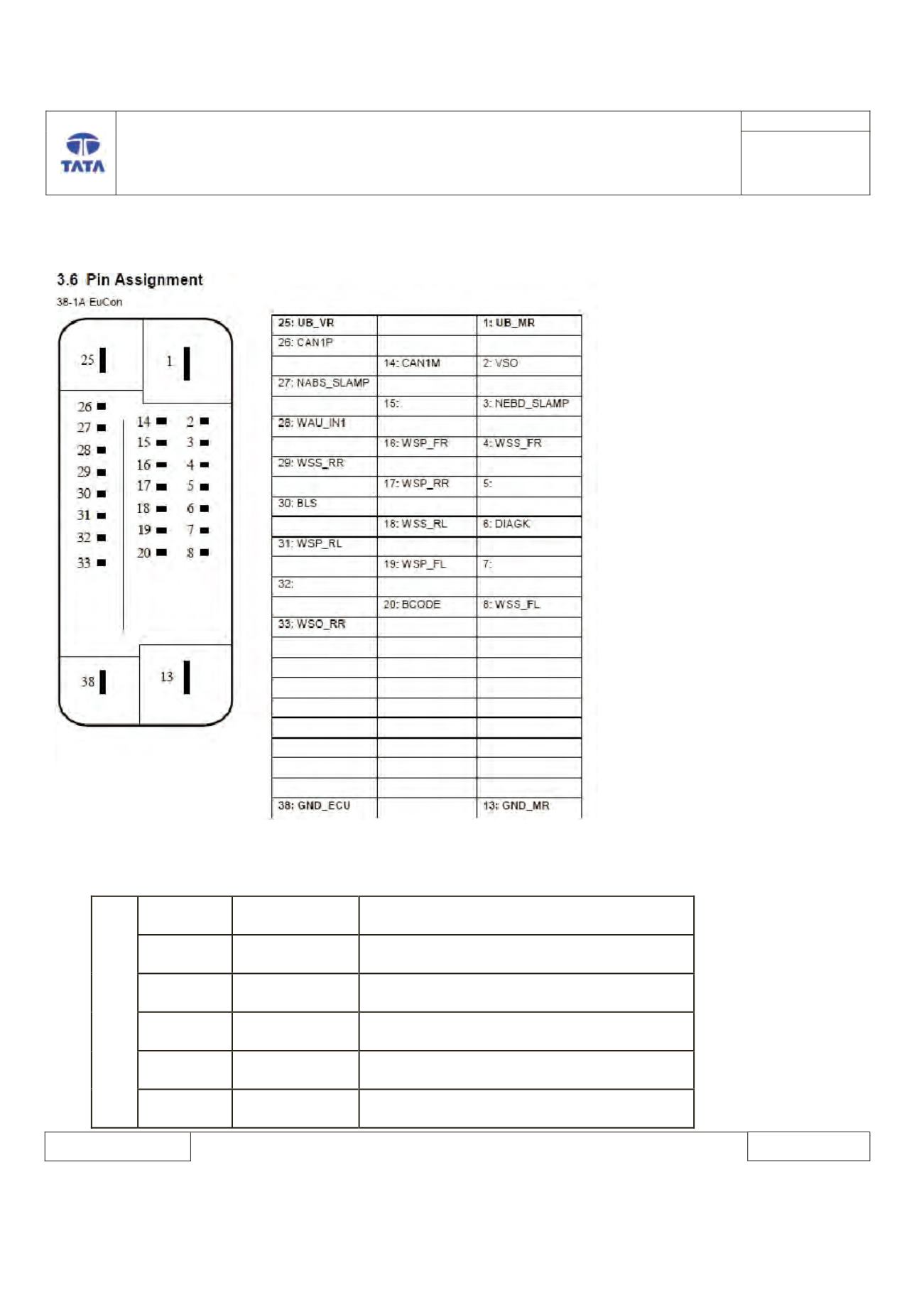

Connector View & Information: -
ECU side Connector
ABS ECU Pin assignment
Pin No.
Pin Name
Description
26
CAN_H
CAN High
14
CAN_L
CAN Low
28
Ign
Ignition
1,25
Vbat
Supply Voltage Battery
13,38
GND
Battery GND
