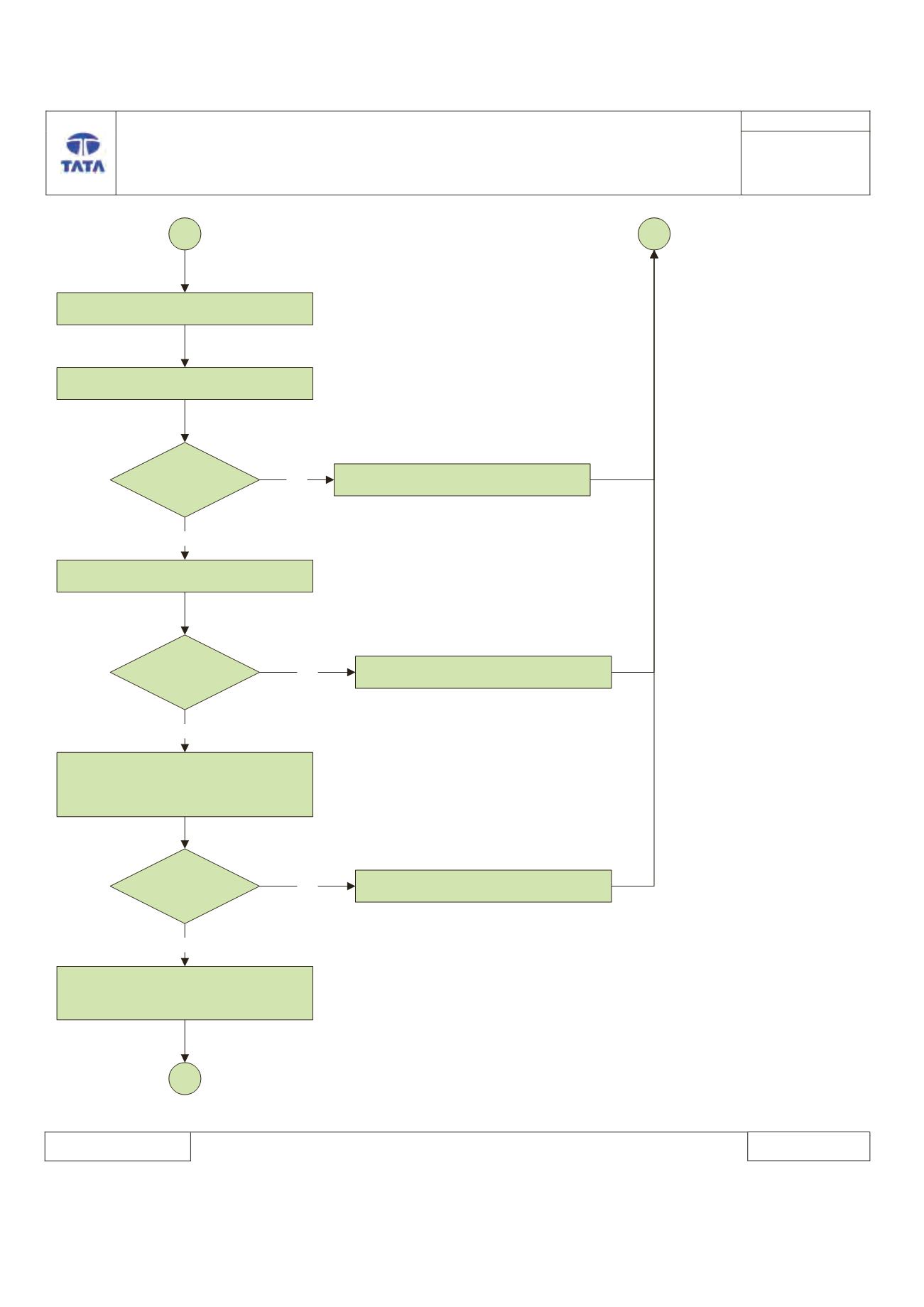

A
B
Are connectors
loose?
1. Remove BCM Connectors
2. Perform visual check for pin bent or damage
Is any connector
faulty?
Correct the connect fault
Yes
x
Remove the Driver Door Master Actuator
x
Check continuity between BCM
connector pins DrDoorLockSig
[C1-20]
and DrDoorUnLockSig
[C1-8]
No
Is continuity found?
Correct the BCM side wiring harness to
remove wrong continuity
Perform visual and functional checks for Driver
Door Master Actuator
No
Yes
Reconnect the connectors firmly
Yes
No
C
Check BCM Connectors for terminal back out
Disconnect vehicle battery connection
(Please follow safety guidelines)
