Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.1
Date: 03 Mar 2017
Author: Body CoC
Page: 676 of 784
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
B
C

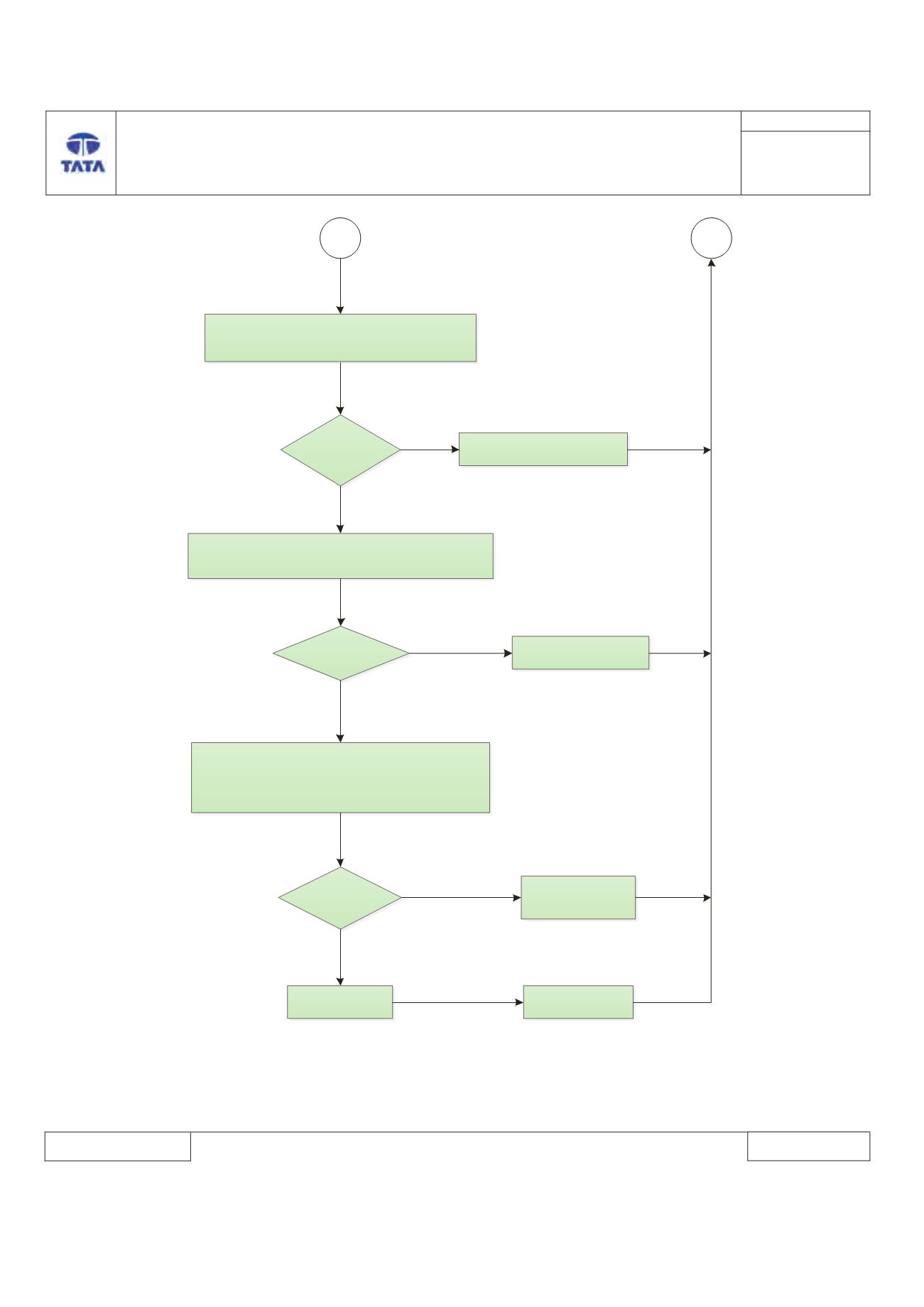

Check continuity between BCM connector pin
[C1-43]
and BCM Battery voltage pin
[C3-1/ C3-2]
Continuity found?
Correct BCM side wiring harness
(Short To Battery)
Yes
1.Remove Wake-Up mating connector
2.Perform the visual check of connectors for pin bend or
damaged etc.
Is connector faulty?
Correct connector fault
(Terminals Bend)
1.Remove all BCM connector
2.Take out Wake-Up output wire
[C1-43]
from connector
3.Reconnect all connectors including battery.
Other ECUs are
Going to OFF after
some time?
Reconnect all
connectors firmly
BCM ECU faulty
Replace BCM ECU
Yes
Yes
No
No
No
