Vehicle Platform: OSPREY / AMP
ECU Name: ESCL
DTC Troubleshooting Data
Version: 1.0
Date: 27 Dec 2016
Author: Hitesh Kaneria
Page: 13 of 59
Copyright ©
TATA MOTORS Ltd.
Thisdocument must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:
After rectification, ensure the following points before handing over the system to the customer
1. Battery Voltage is between 9 to 16V.
2. Replacement of ECU
3. Drive the vehicle on road and check the assistance
Circuit Schematic Diagram:
NA
Component Location & Image:
NA
Connector Location:
NA

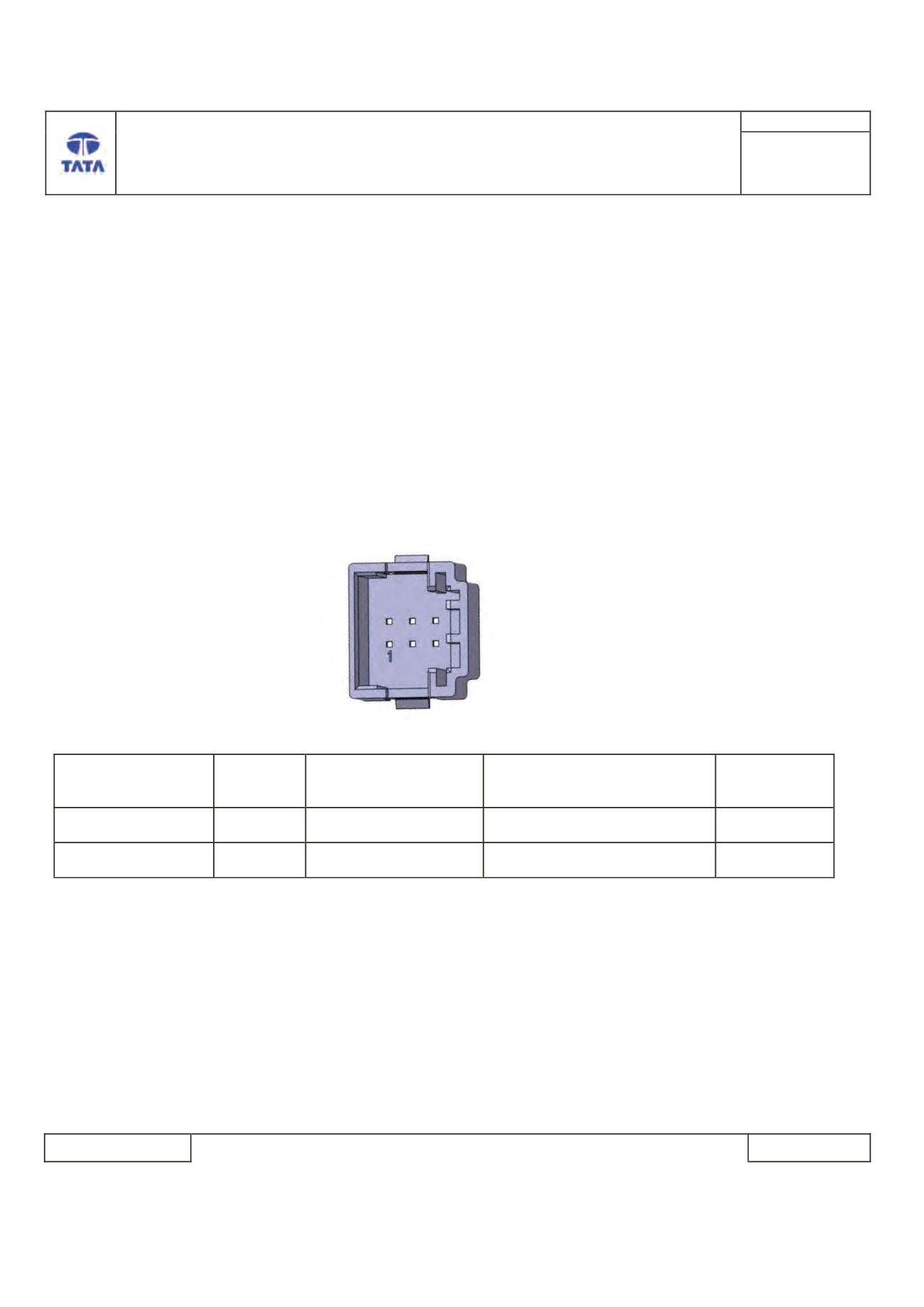

Connector View& Information:
Connector Number
Pin
number
Signal Name
Signal Description
Signal type
(Select from
drop down)
1
1
Batt_Supply_+12v
ESCL is permanently supplied
by Batt_Supply
Power
1
6
GND-2_+12v
ESCL is permanently supplied
by Batt_Supply
Gnd
Inspection Method:
NA
