ABS - DTC Troubleshooting Data
(Bolt, Zest, Tiago, Pelican, Nexon & Tigor)
Version: 1.4
Date: 21 April 2017
Author: ERC - Chassis E&E
Page 16 of 166
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Trouble Shooting

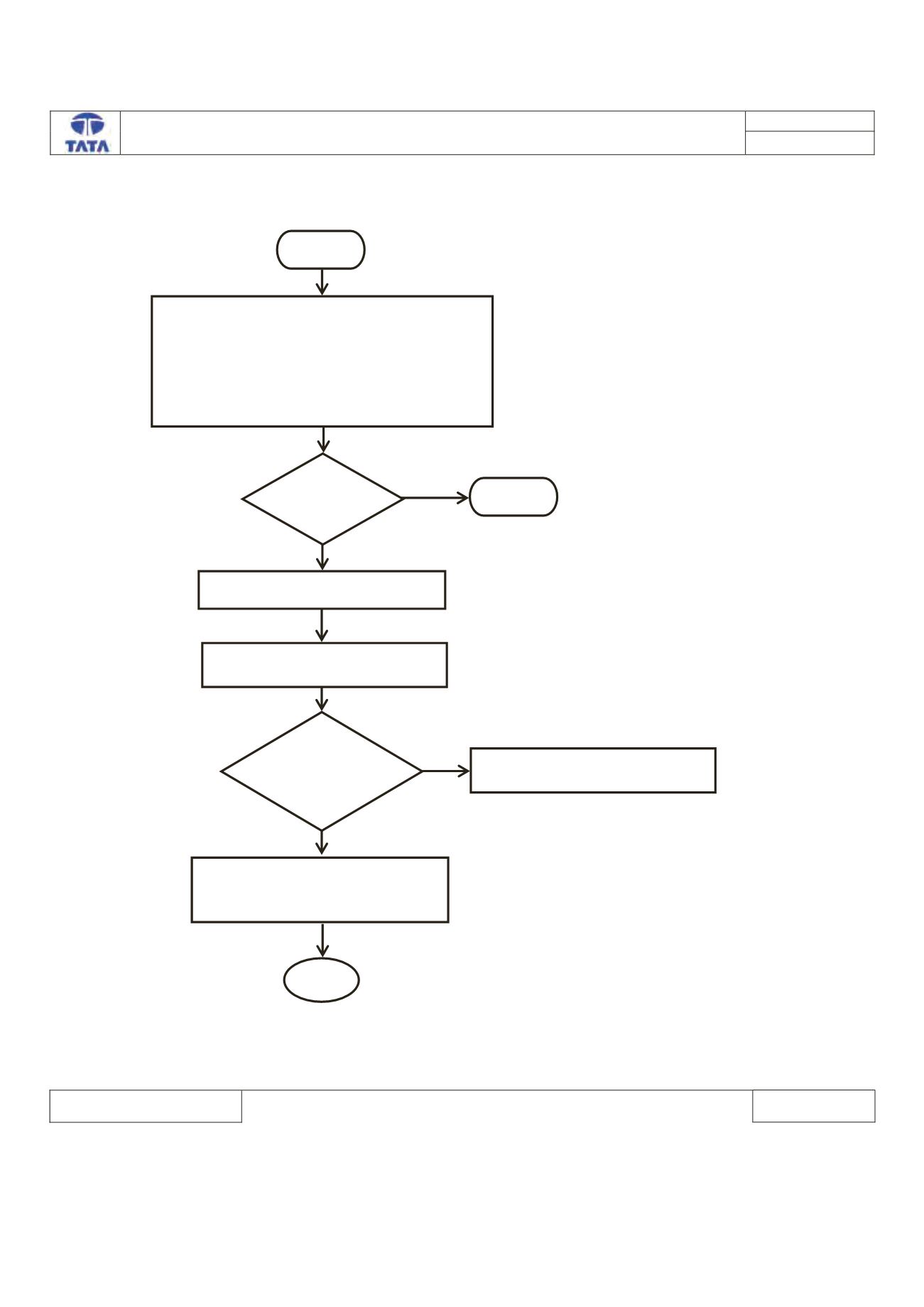

CHECK FOR WORN OR MISSING TEETH
START
IS DTC
PRESENT?
STOP
NO
YES
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C0031-64 IS PRESENT
NO
EXAMINE THE WHEEL SPEED SENSOR
IS WHEEL
SPEED SENSOR
OK?
YES
NO
EXCHANGE THE WHEEL SPEED SENSOR
A
1. PERFORM IGNITION OFF/ON
2. DRIVE THE VEHICLE AROUND 60KMPH
3. CHECK THE DTC
