ABS - DTC Troubleshooting Data
(Bolt, Zest, Tiago, Pelican, Nexon & Tigor)
Version: 1.4
Date: 21 April 2017
Author: ERC - Chassis E&E
Page 88 of 166
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Trouble Shooting
DTC’s confirmation -
1) After rectifying the fault perform Ignition Off/On and wait for 5 seconds to get fault free system.
Circuit Schematic Diagram -
NA
Component Location & Image -
NA
Connector Location -
NA
Connector View & Information -
NA

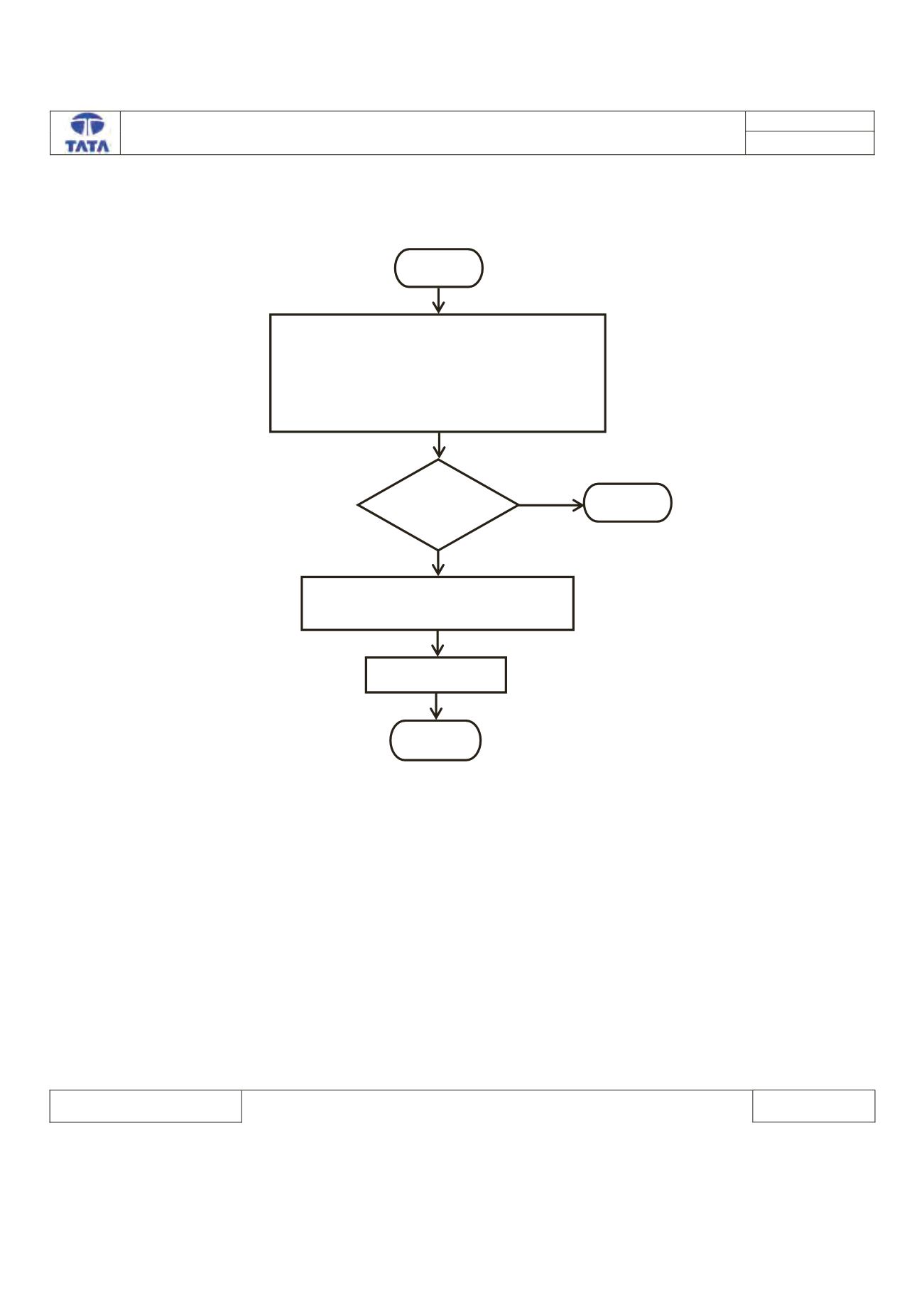

HYDRAULIC OR ELECTRIC FAILURE IN RIGHT
FRONT INLETVALVE CIRCUIT
REPLACE THE ECU
STOP
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C0014-04 IS PRESENT
YES
