ABS - DTC Troubleshooting Data
(Bolt, Zest, Tiago, Pelican, Nexon & Tigor)
Version: 1.4
Date: 21 April 2017
Author: ERC - Chassis E&E
Page 132 of 166
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Trouble Shooting
DTC’s confirmation -
1) After rectifying the fault perform Ignition Off/On
2) Drive the vehicle around 60kmph
Circuit Schematic Diagram -
NA
Component Location & Image -
NA
Connector Location -
NA
Connector View & Information -
NA

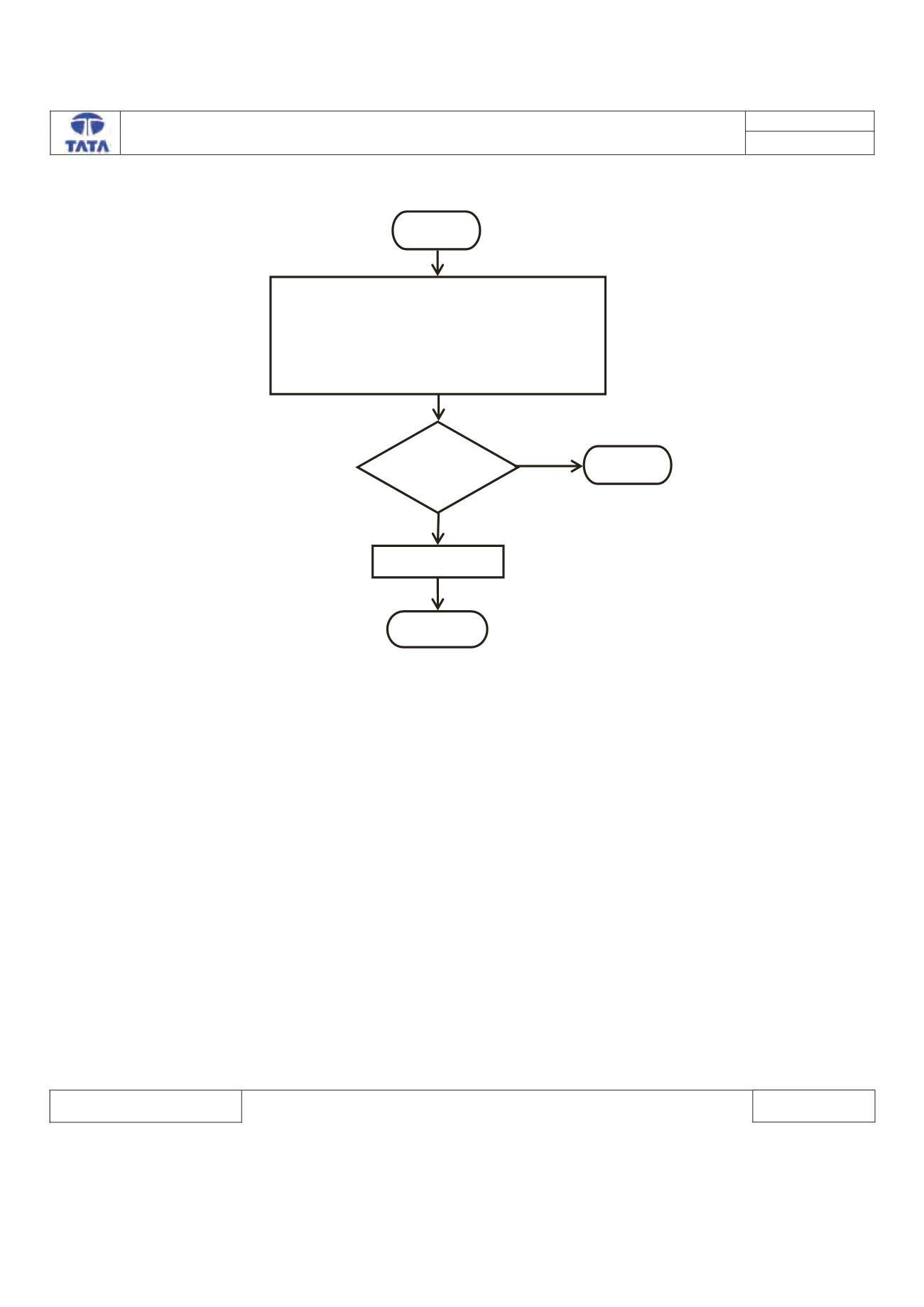

YES
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC U1006-49 IS PRESENT
REPLACE THE ECU
STOP
