TML Park Distance Controller (PDC) ECU DTC
Troubleshooting guide for Nexon
Version: 0.2
Date: 08Jun17
Author:
Ravi Teja
Page: 92 of 123
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of
author.
TCM ECU Pin assignment:
Vehicle Connector-1
Pin No.
Pin Name
Description
45
CAN_H
CAN High
33
CAN_L
CAN Low
28
Ign
Ignition
27
Vbat
Supply Voltage Battery
1,2
GND
Battery GND

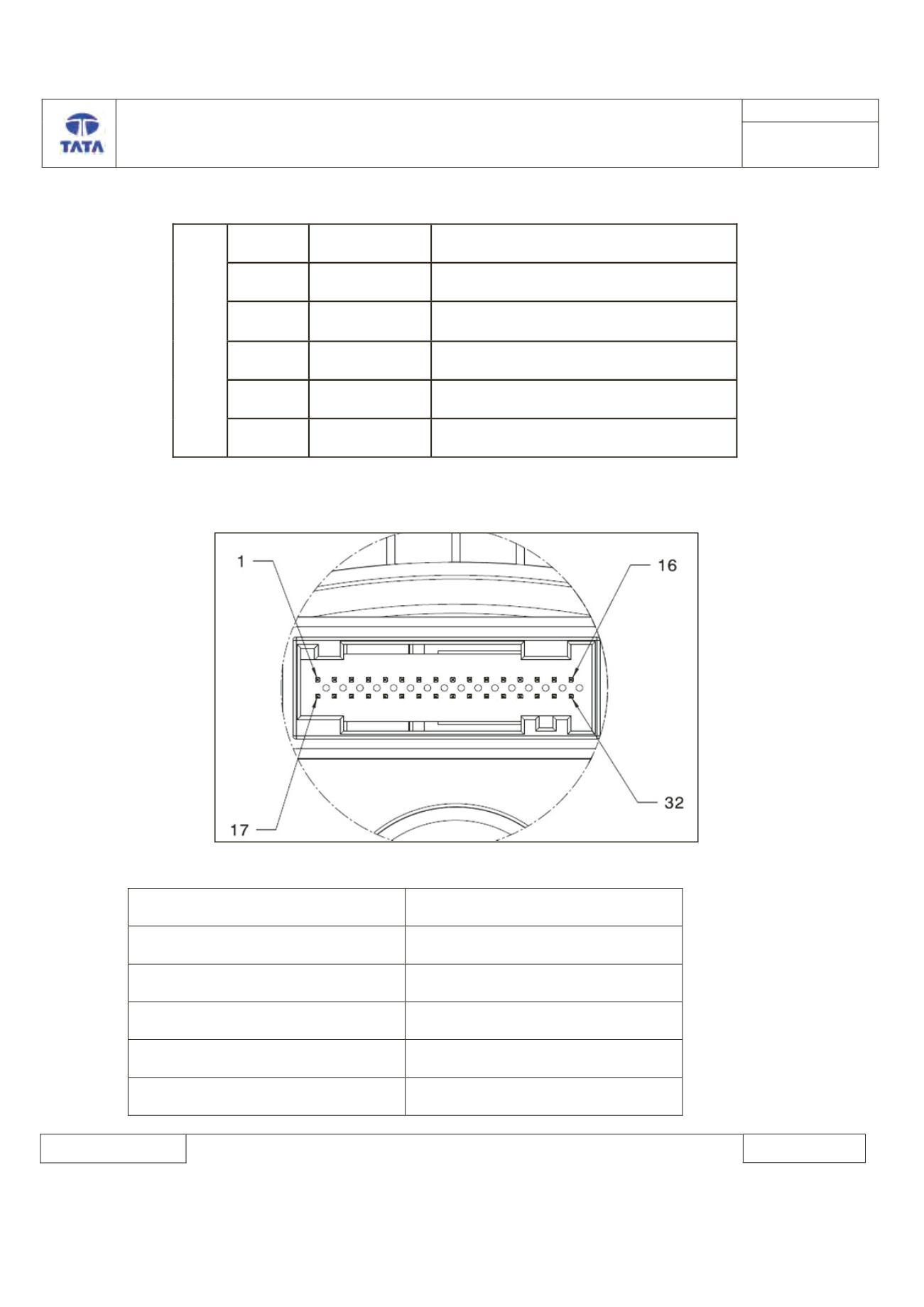

IPC ECU side connector diagram
IPC ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
6
CAN_L chasis
5
Battery
1
Ignition input
22
Battery ground
24
