SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag CoC Review &Approved

by:Sanjeev VM

Page: 25 of 549

DTC’s confirmation:-

After rectification, ensure the following points using TML diagnostic tool before handing over to customer.

a)

Clear the DTC’s & make sure no DTC’s are present for Airbag s

ystem

b)

Check whether any new DTC’s are getting qualified for repeated cranking.

c) Ensure the Airbag Warning Lamp Indication is continuously ON in Instrument Cluster for

4 seconds

after

Ignition ON

d) Ensure the Airbag Warning Lamp Indication goes OFF after

4 seconds

from Ignition ON.

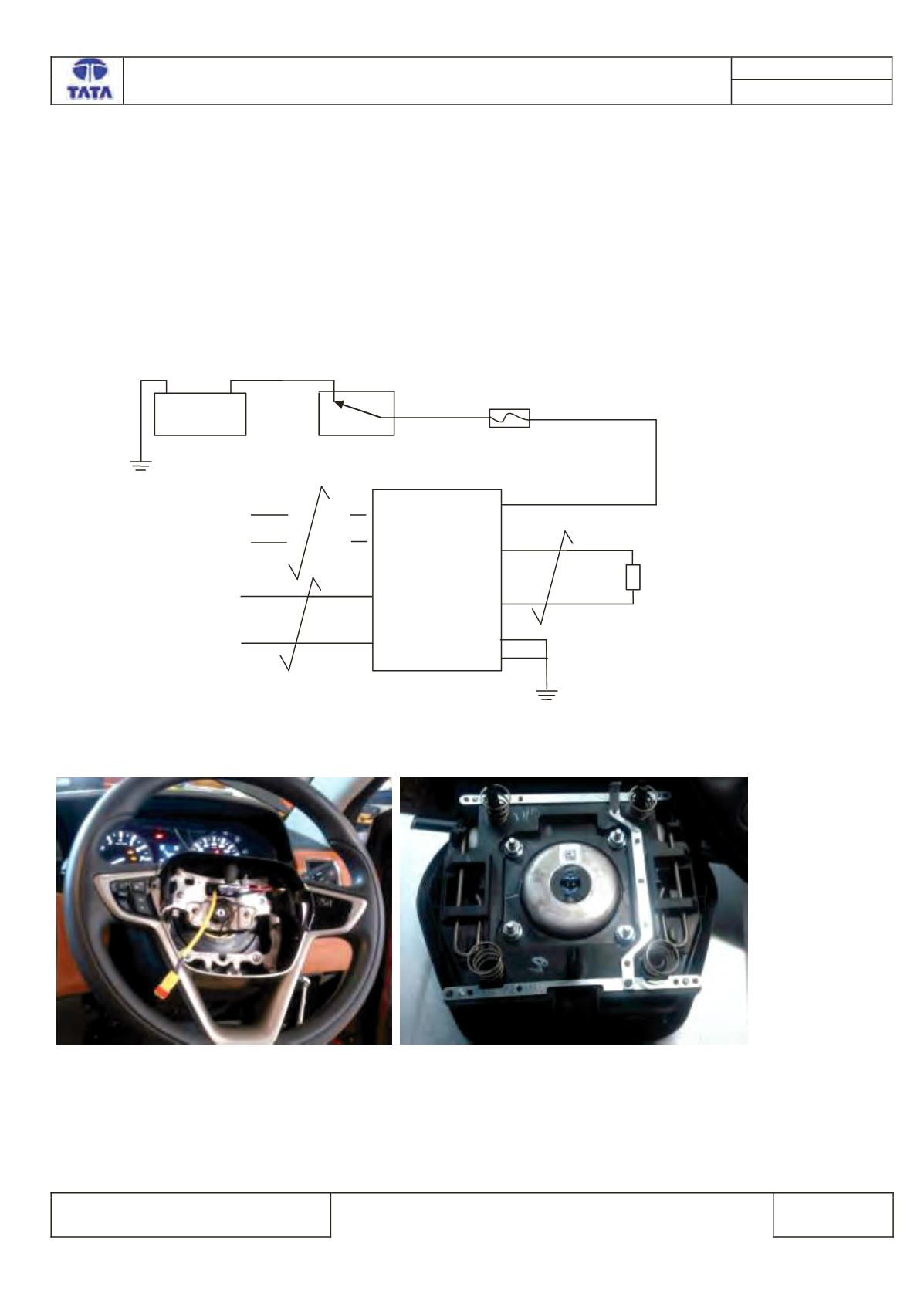

Circuit Schematic Diagram:-

Schematic shown below for illustration

Battery>>>>>Fuse>>>>Relay>>>>>>>Sensor/Actuator>>>>>ECU

Component Location & Image:-

+

V

12

Battery

A23

CAN H

Ignition Sw itch

CAN L

A12

A7

-

RESTRAINTS

CONTROL

MODULE

Driver

Airbag

A1

A2

Fuse 10A

A15

A16

ABFD-

ABFD+

Vbat

Driver Frontal Airbag connector is present inside the steering wheel.

Fig:15 Driver Frontal Airbag connector

location.

Fig:16 Driver Airbag module
