SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 239 of 549

DTC’s confirmation:-

After rectification, ensure the following points using TML diagnostic tool before handing over to customer.

Clear the DTC’s & make sure no DTC’s are present for Airbag system

b) Check whethe

r any new DTC’s are getting qualified for repeated cranking.

c) Ensure the Airbag Warning Lamp Indication is continuously ON in Instrument Cluster for

4 seconds

after

Ignition ON

d) Ensure the Airbag Warning Lamp Indication goes OFF after

4 seconds

from Ignition ON.

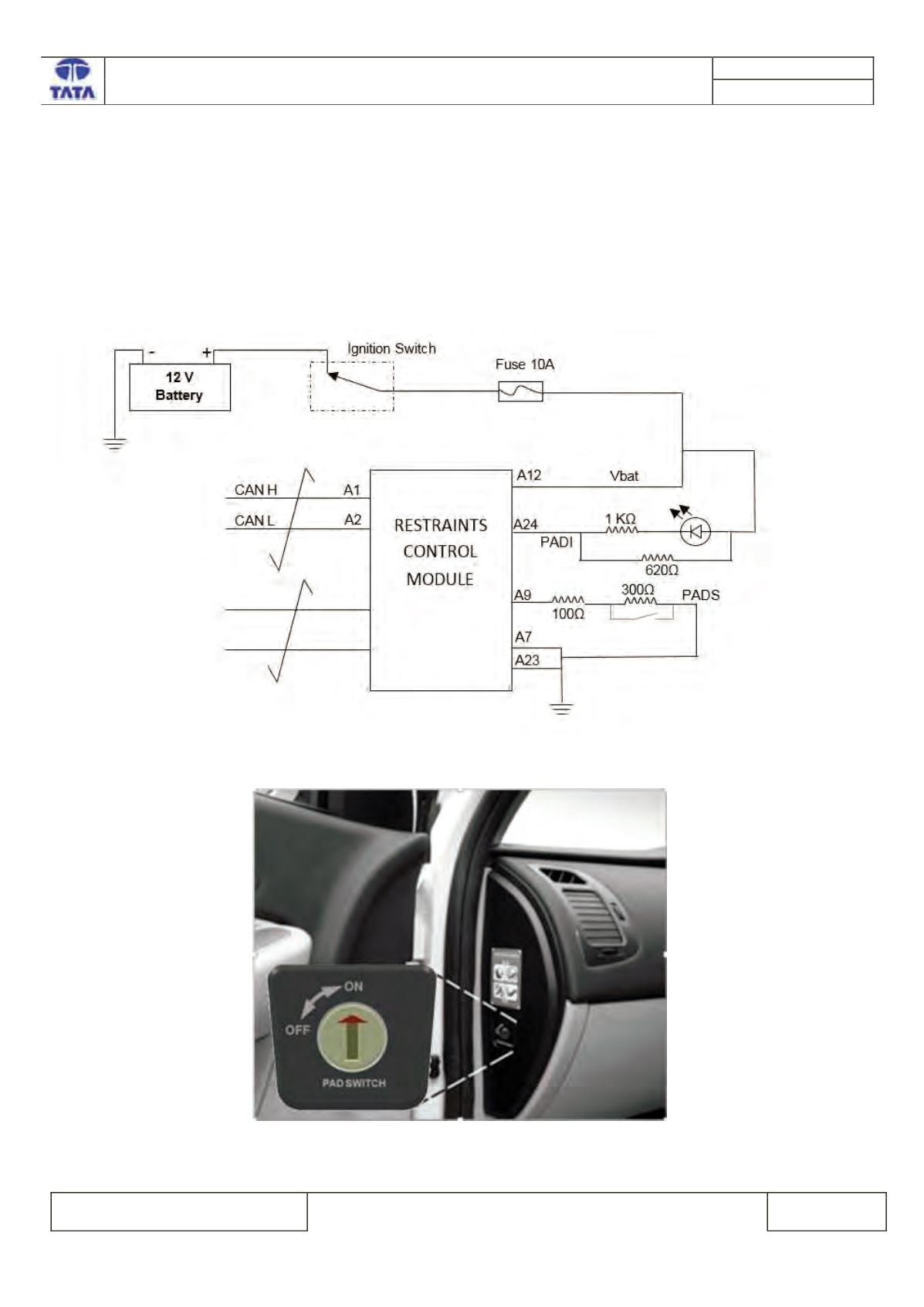

Circuit Schematic Diagram:-

Schematic shown below for illustration

Battery>>>>>Fuse>>>>Relay>>>>>>>Sensor/Actuator>>>>>ECU

Component Location & Image:-

Passenger Airbag Deactivation switch (PADS) is provided on the left side of the dash board.

Fig218:- Passenger Airbag Deactivation switch (PADS)
