After rectification, clear all DTC’s and ensure the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
After key and engine ON with TML TCU diagnostic tool connected, monitor the engine speed and confirm that it
represents the idle speed of the engine.
Drive the vehicle through all gears in both Automatic and Manual modes
Ensure no DTC is active and Transmission Fault Lamp is OFF.
Circuit Schematic Diagram:
Component Location & Image:-
NA

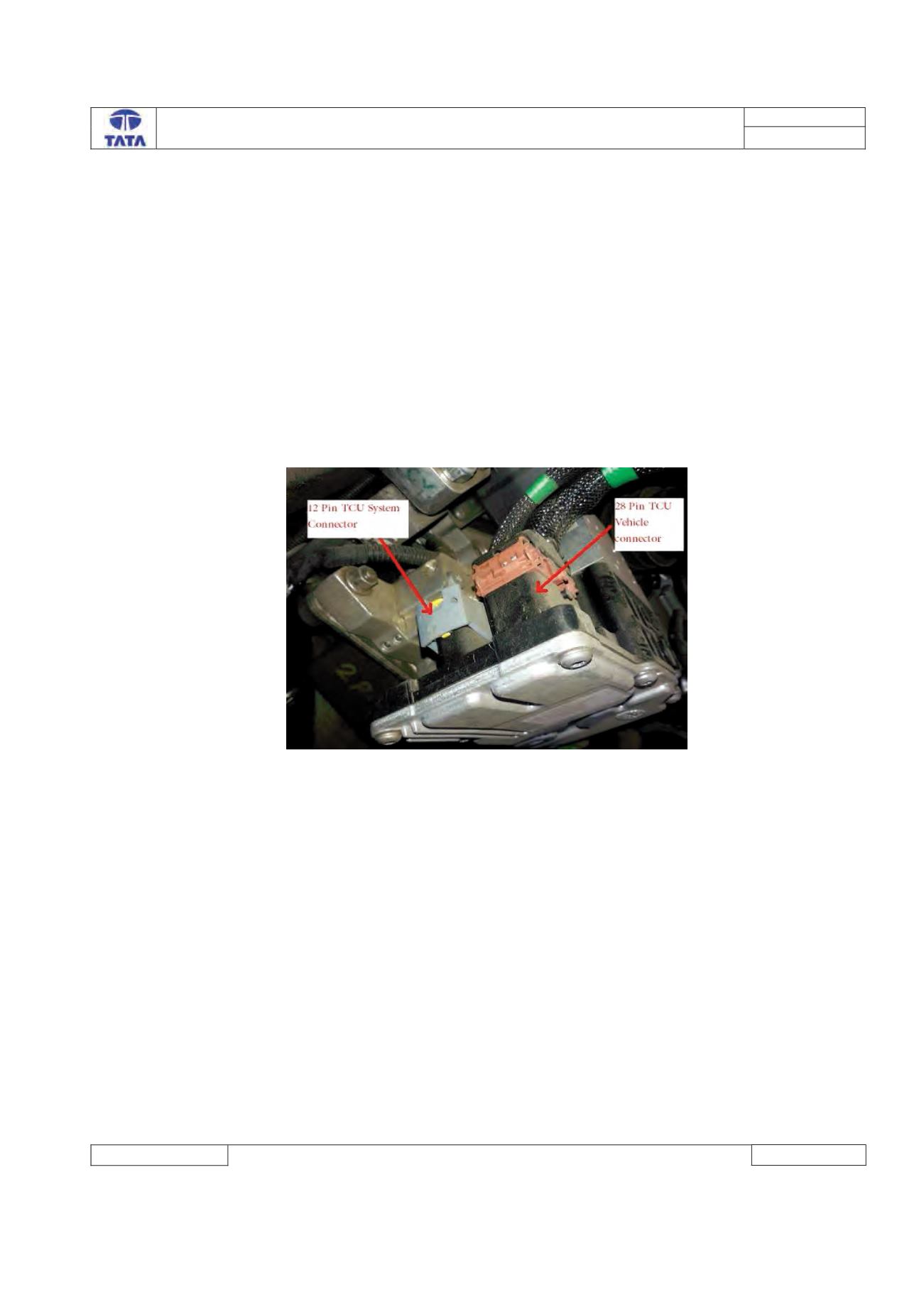

Connector Location: -
TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
Connector View & Information: -
