Nexon Gasoline – EMS ECU Bosch
DTC Troubleshooting Manual
Version: 0.1
Date: 26-08-2017
Prepared By: Sunu S Babu/Yogesh Jadhav
Checked By: Yeshwant Jadhav
Approved By: Satish Kumar
Document Part No: 2921 02 224 A1736
Page: 591 of 1203
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

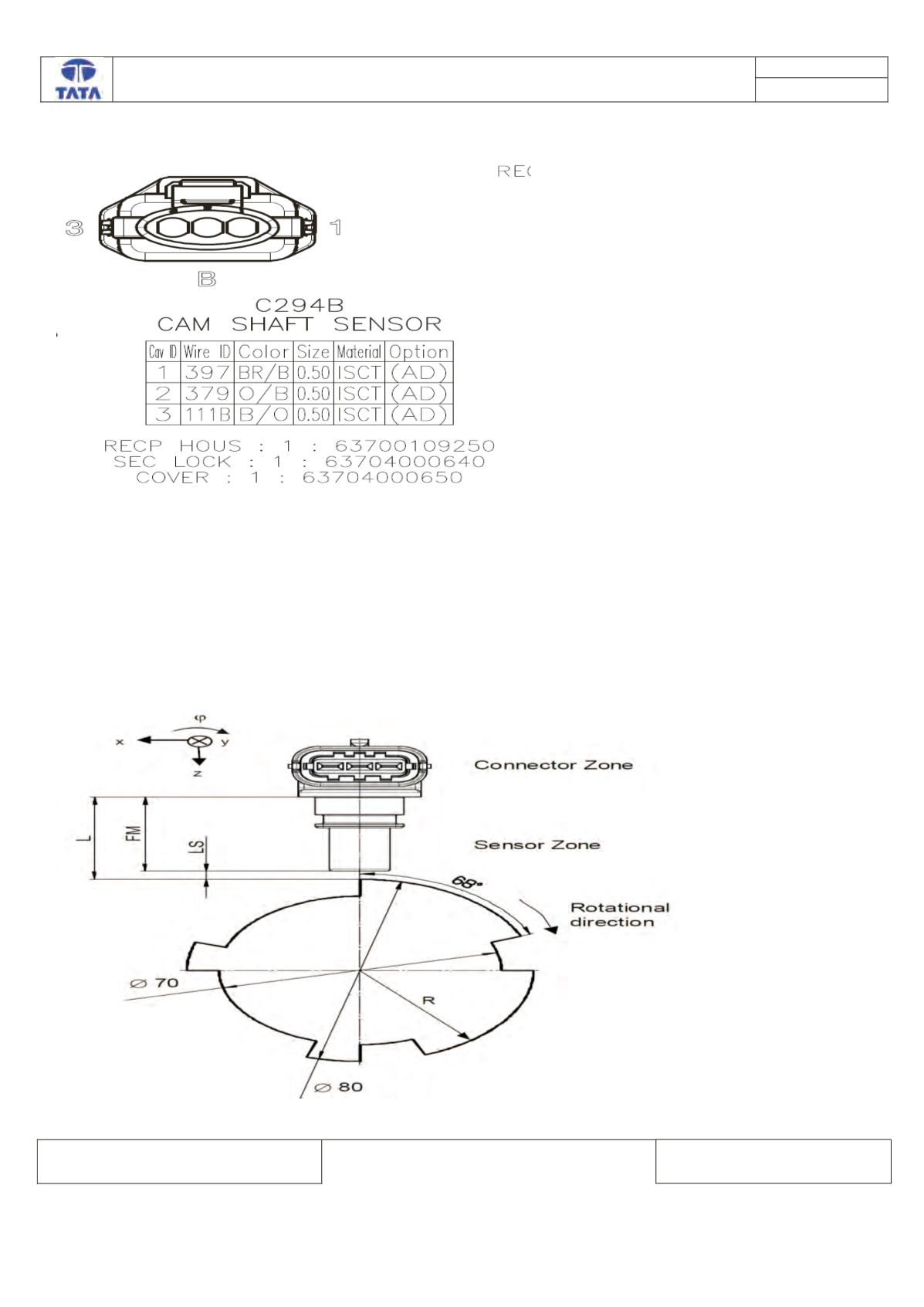

Connector View & Information: -
Cam Shaft Sensor measures the speed of the CAM shaft.
Operating Principle:
Cam shaft Sensor contains a permanent magnet and a Hall IC. Due to the rotation of a ferromagnetic target wheel in
front of Sensor, the magnetic field is modulated at the place of the hall probe. With a tooth in front of the Sensor, the
magnetic field increases, with a slot it decreases. This modulation results in changes of the output signal. The
magnetic field is evaluated by the hall probe in the ASIC.
Working Air Gap and Installation Dimension:
