Nexon Gasoline – EMS ECU Bosch
DTC Troubleshooting Manual
Version: 0.1
Date: 26-08-2017
Prepared By: Sunu S Babu/Yogesh Jadhav
Checked By: Yeshwant Jadhav
Approved By: Satish Kumar
Document Part No: 2921 02 224 A1736
Page: 1151 of 1203
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s Confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a.
Check if ECM ECU is communicating with TML diagnostic tools or not.
b.
DTC should not be present in ECU memory.

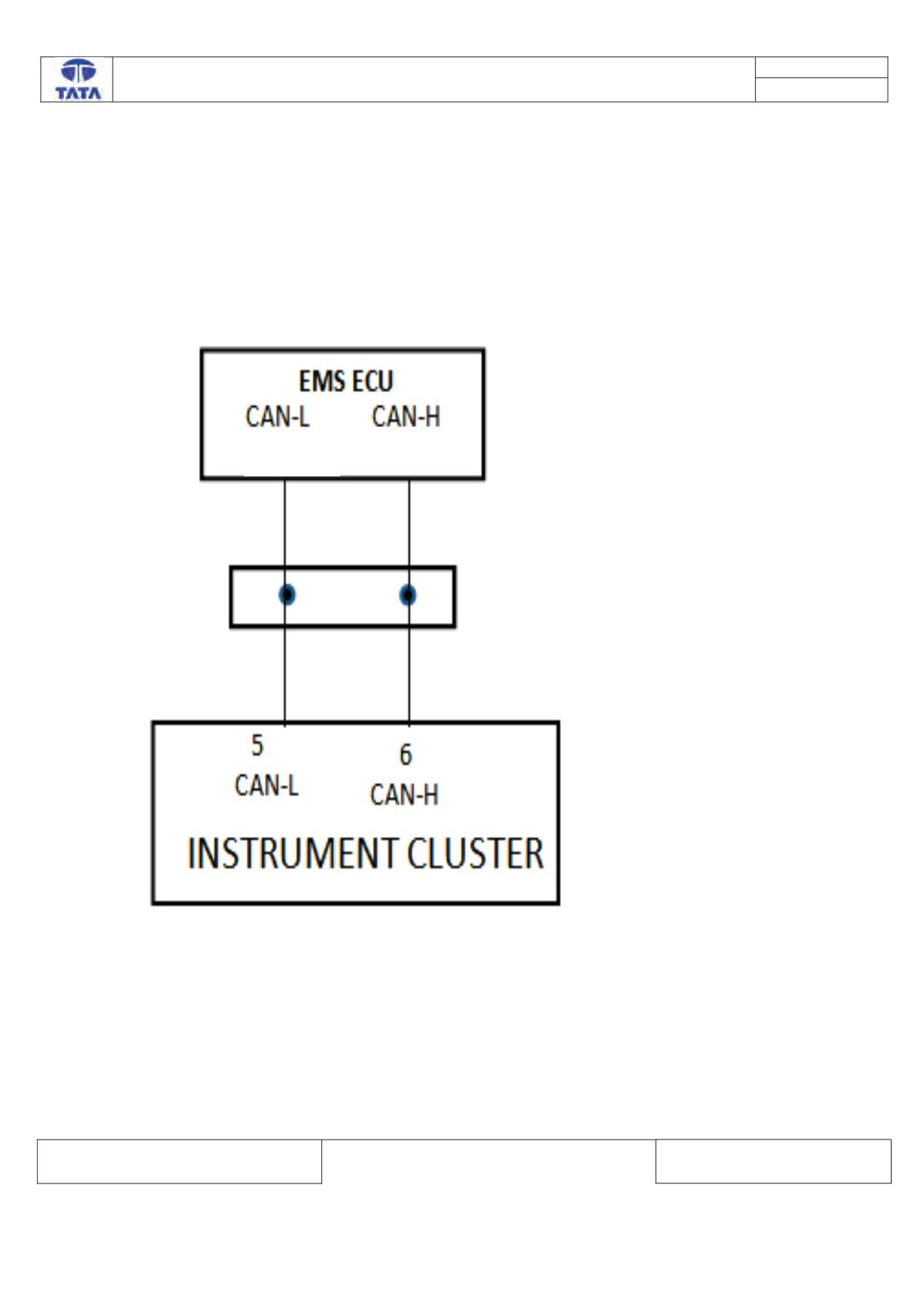

Circuit Schematic:-
144
132
