DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a) DTC should not be in ECU fault memory.

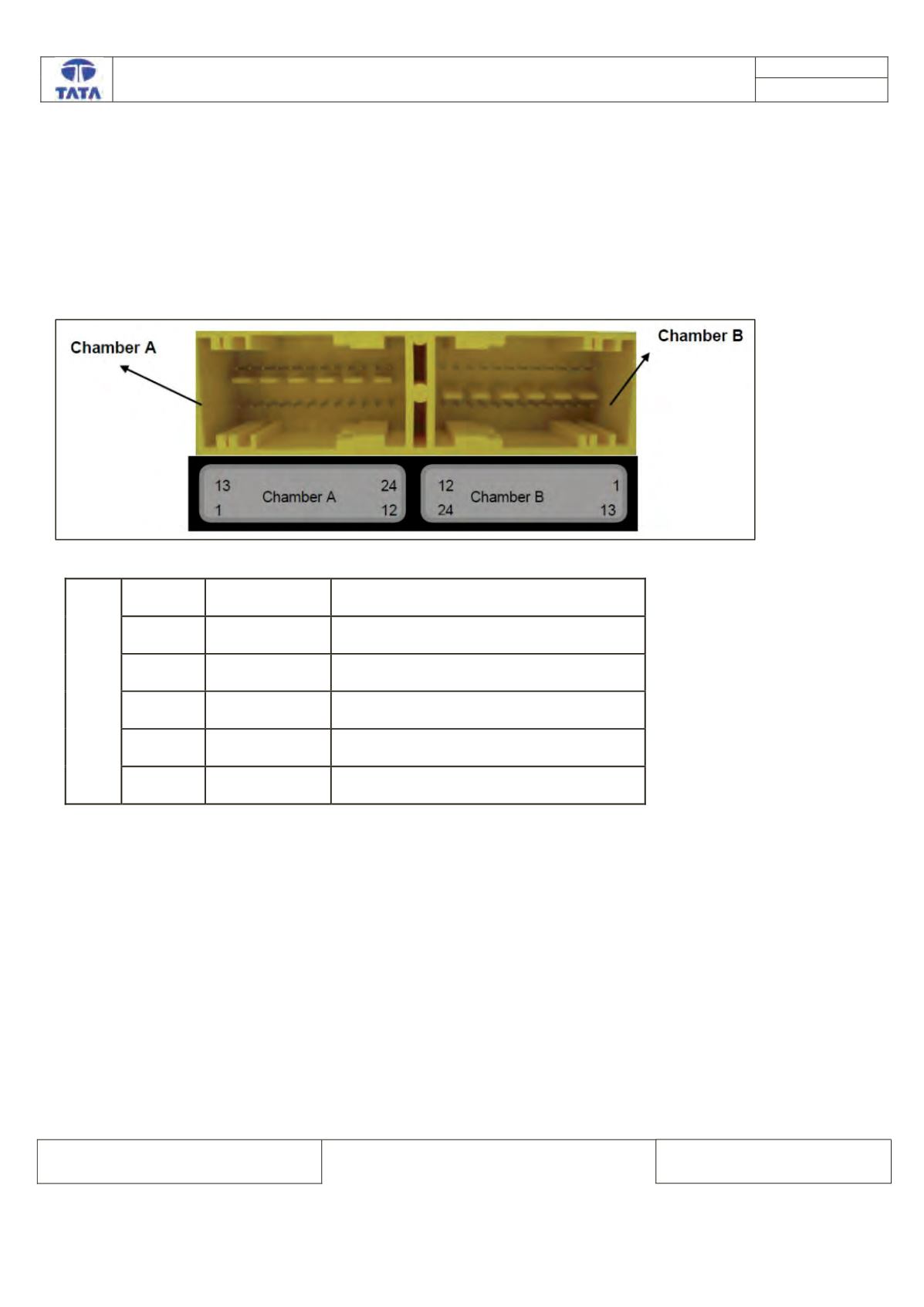

Connector View and interfaces diagram.
RCM ECU side connector diagram
RCM ECU Pin
assignment:-
CHAMBER A
Pin No.
Pin Name
Description
1
CAN_H
CAN High
2
CAN_L
CAN Low
7
A_GND
Common Switch GND
12
IGN
Supply Voltage Battery
23
GND
Power GND
