OSPREY- Application
DTC Troubleshooting Data
Version: 4.0
Date: 10-02-2017
Prepared by: Mithipati Prasad
Checked by: G S Raju / Senthilnathan S
Page: 282 of 654
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Battery supply to Crank Inhibit relay contact pin X.
connections as per
the circuit
schematic
3. Are there any pins damaged at EMS ECU Connector
Replace the
connector or wiring
harness
Go to step 4
4
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Step 5
5
Is relay getting Supply at its pin
XX
Go to Step 6
Repair the harness
as per the
schematic
6
Is Starter Relay control Pin 29, short circuited to Battery?
Repair the harness
as per the schematic Go to Step 7
7
Fault Still Persists?
Replace relay and
then if Fault still
persists then Call
Hot Line.
Follow the steps
again for
reconfirmation
DTC’s confirmation (checks before handing over vehicle to customer):
x
Press the clutch fully & then start the engine
x
Check the errors at Ignition ON, engine running @ Idle & Fly-up with different vehicle speeds also

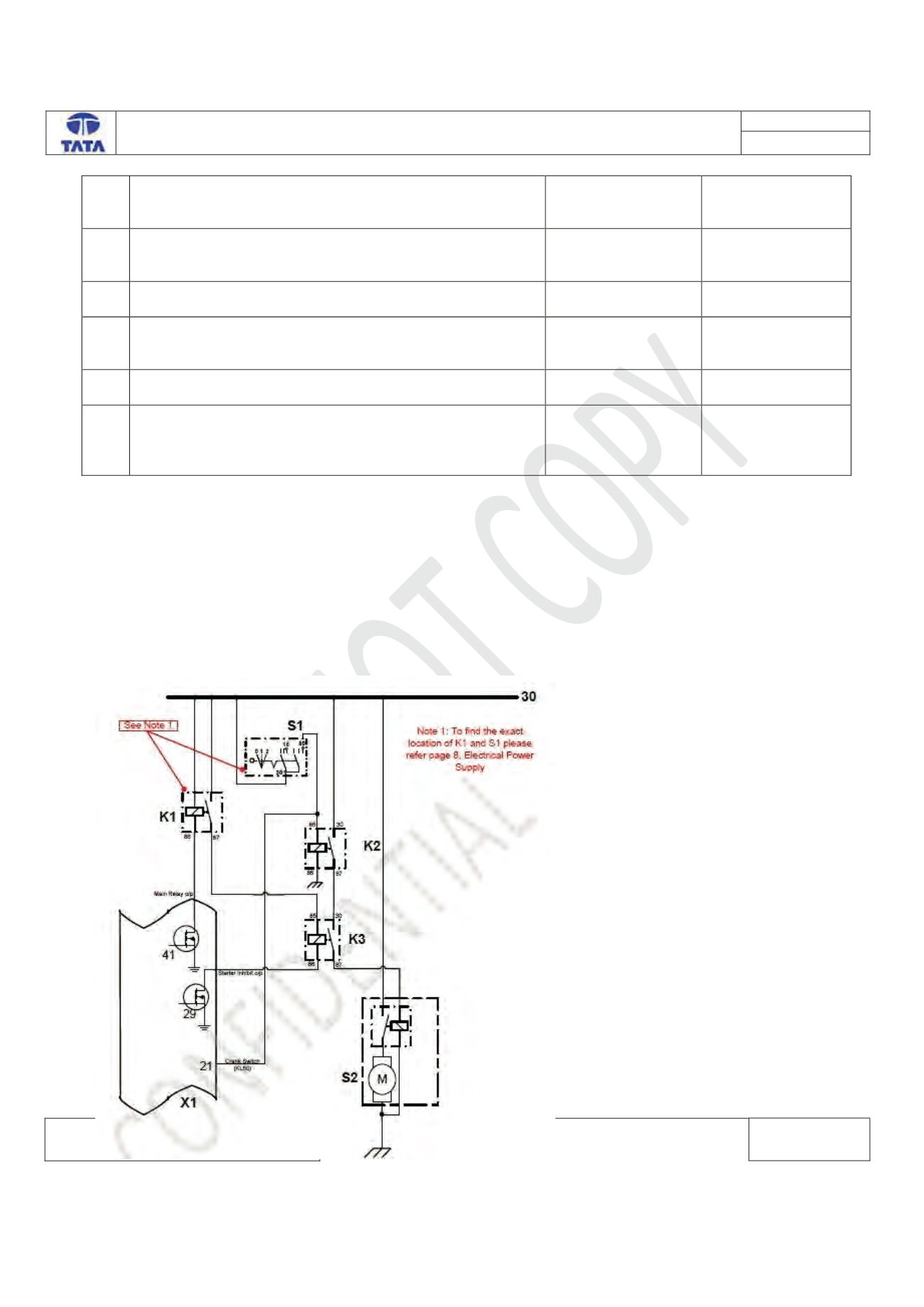

Circuit Schematic Diagram:
