OSPREY- Application
DTC Troubleshooting Data
Version: 4.0
Date: 10-02-2017
Prepared by: Mithipati Prasad
Checked by: G S Raju / Senthilnathan S
Page: 375 of 654
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation (checks before handing over vehicle to customer):
x
Please fit the injector with its connector on wiring harness and remove ECU connector and check for continuity
between injector and the ECU connector.
x
Perform actuator test for the corresponding injector cylinder 3.
x
Check the errors at Ignition ON, engine running @ Idle & Fly up with different vehicle speeds also
x
If error present, then rectify the errors.
x
Confirm that there is no error logged before handed over vehicle to customer.

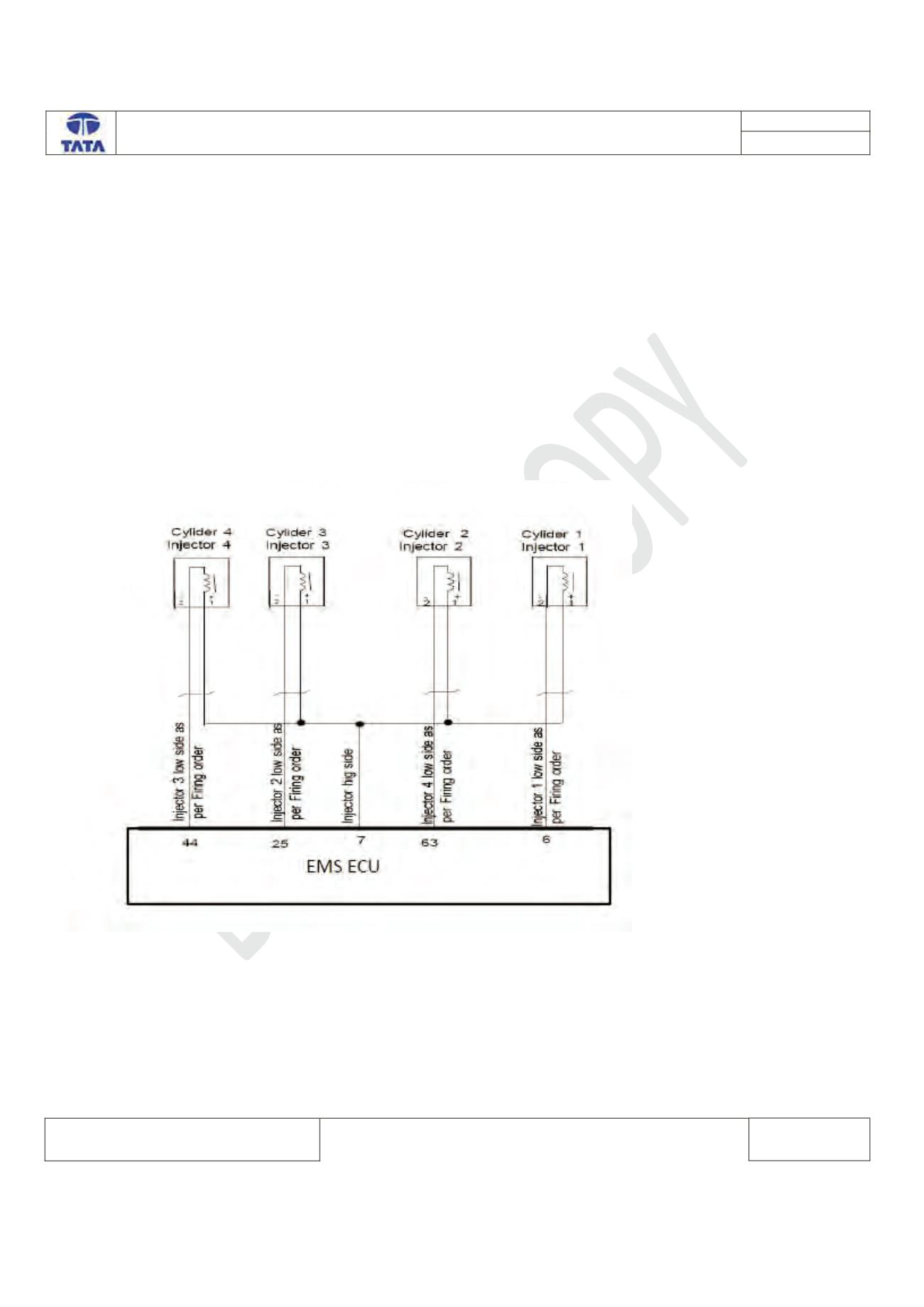

Circuit Schematic Diagram:
