Perform actuator test for the injectors.
x
Check the errors at Ignition ON, engine running @ Idle & Fly-up with different vehicle speeds also. No error shall
be logged by EMS.

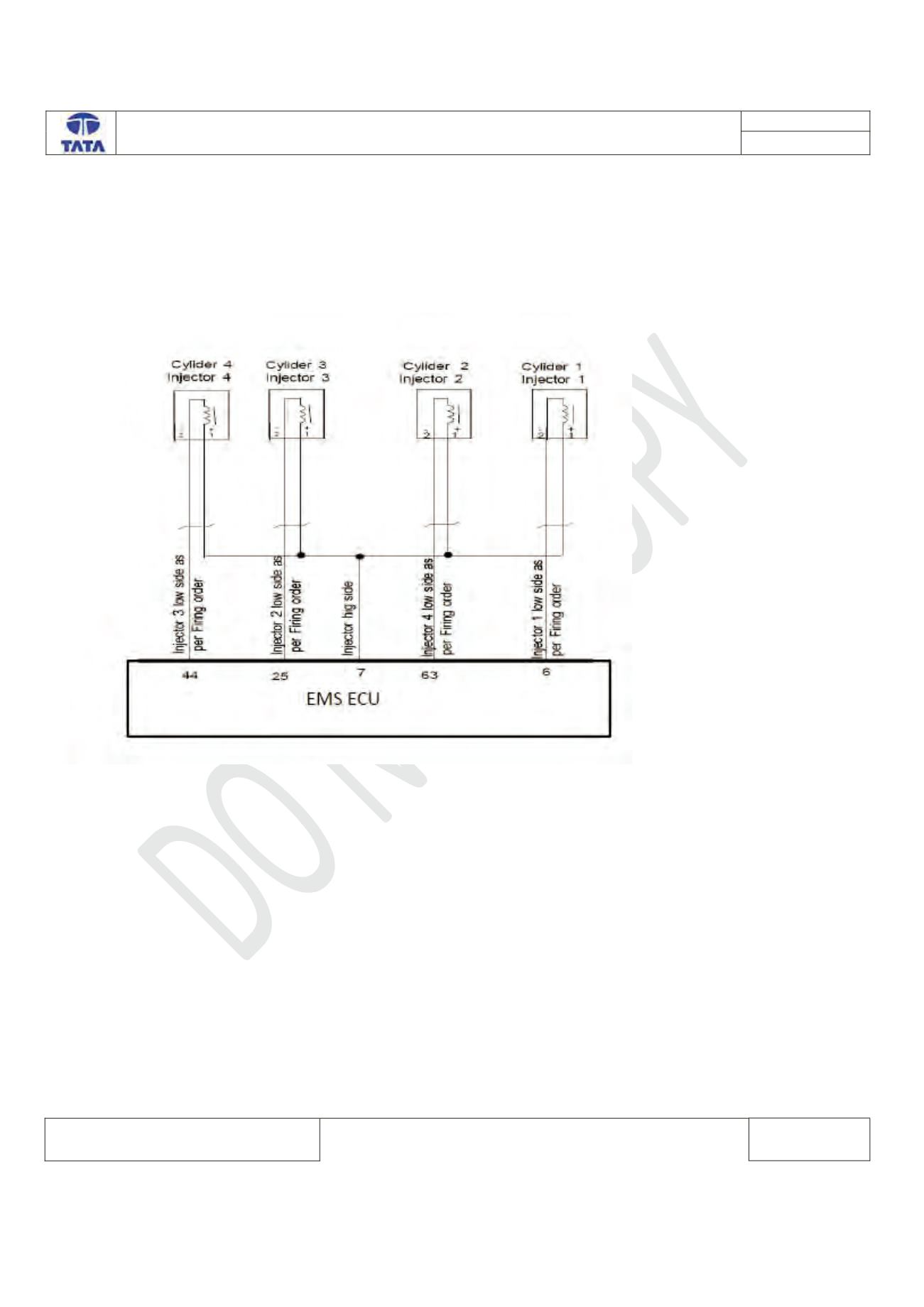

Circuit Schematic Diagram:
Component location & Connector location Image for all 4 Injectors:
