DTC’s confirmation (checks before handing over vehicle to customer):
x
Please fit the injector with its connector on wiring harness and remove ECU connector and check for continuity
between injector and the ECU connector.
x
Perform actuator test for the injectors.
x
Check the errors at Ignition ON, engine running @ Idle & Fly-up with different vehicle speeds also. No error shall
be logged by EMS.

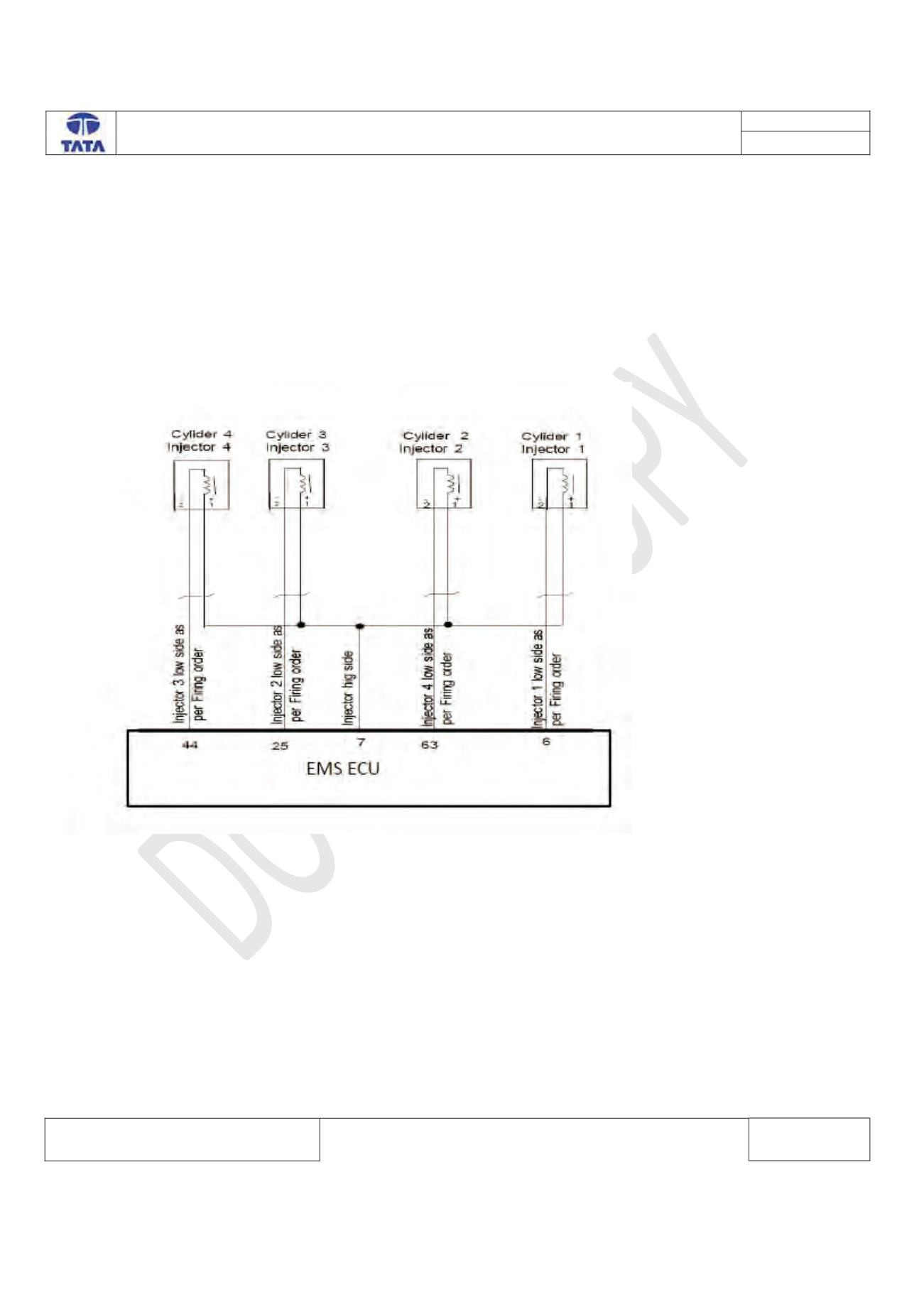

Circuit Schematic Diagram:
