OSPREY- Application
DTC Troubleshooting Data
Version: 4.0
Date: 10-02-2017
Prepared by: Mithipati Prasad
Checked by: G S Raju / Senthilnathan S
Page: 619 of 654
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

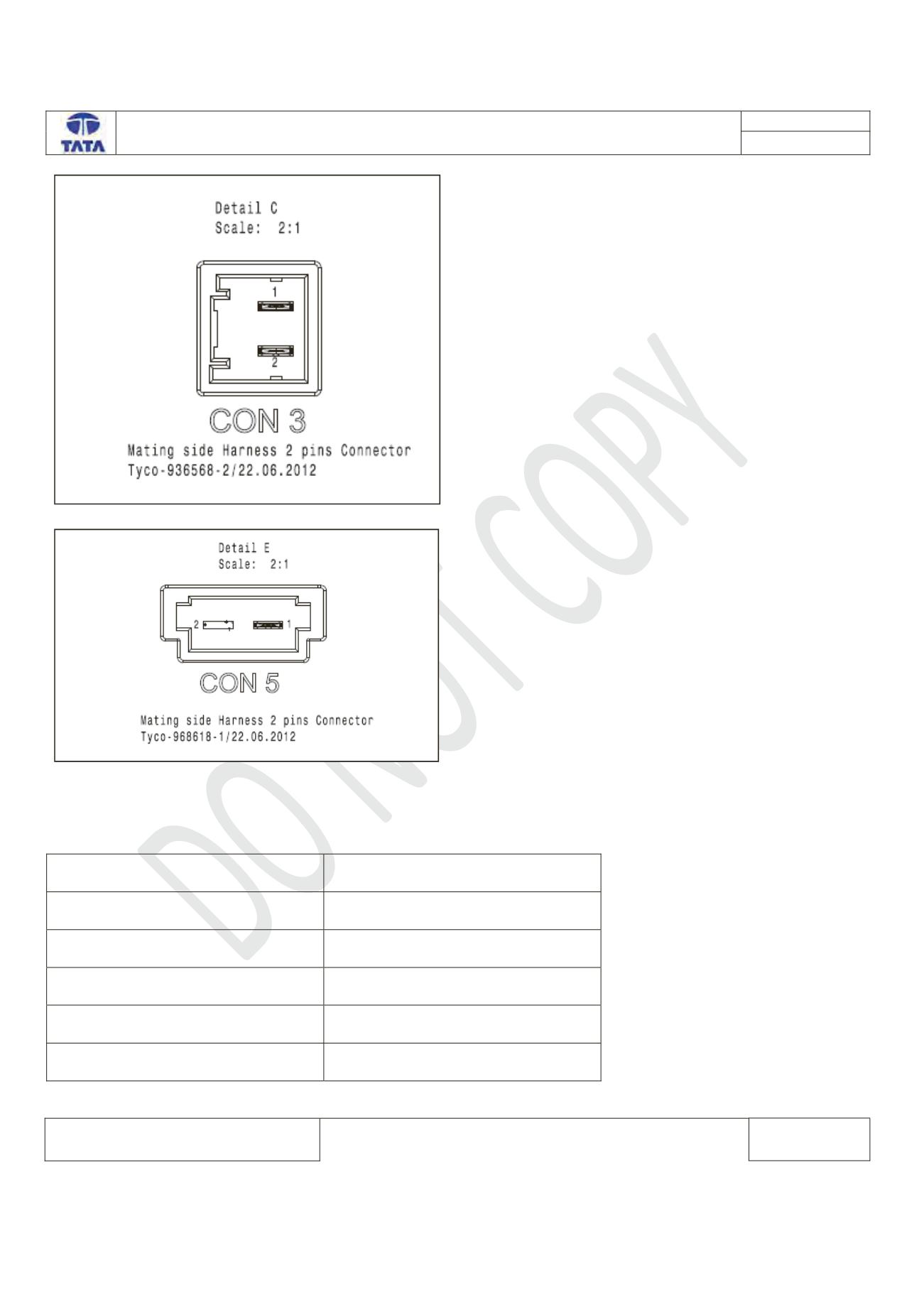

BCM Connector C ECU side pin out
BCM Connector E ECU side pin out
BCM ECU pin details:-
Description
ECU pin
CAN_H chasis
A48
CAN_L chasis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26
