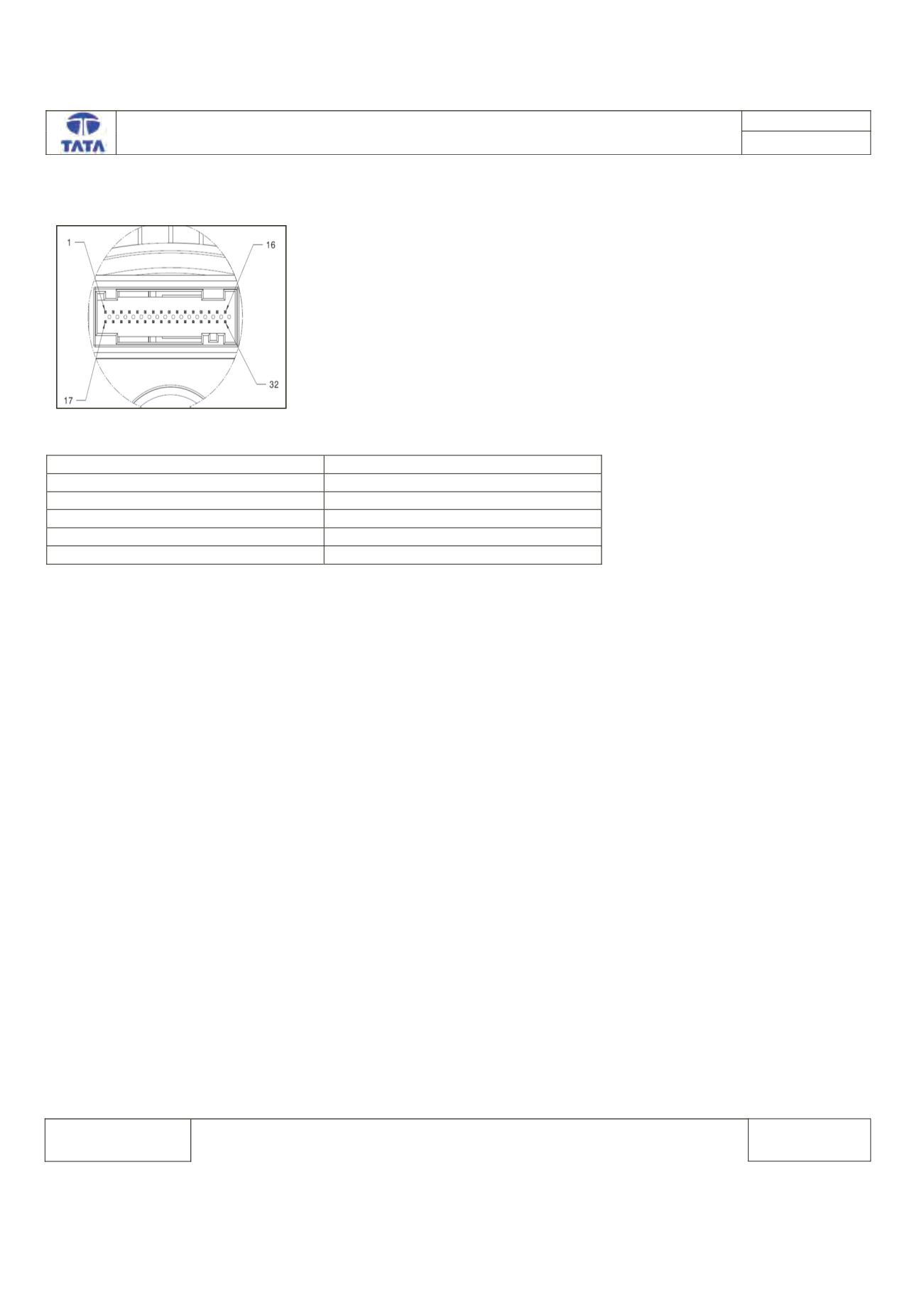

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24
