TML Infotainment DTC Troubleshooting guide for Osprey
Version: 0.2
Date: 21-Mar-17
Author:
Vijaya Bhaskar
B/Hemant Mitra
Page: 19 of 63
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
Once the DTC is rectified, a valid media device like USB/SD/iPod or Radio should be played using Head Unit to
confirm proper working of all speakers.

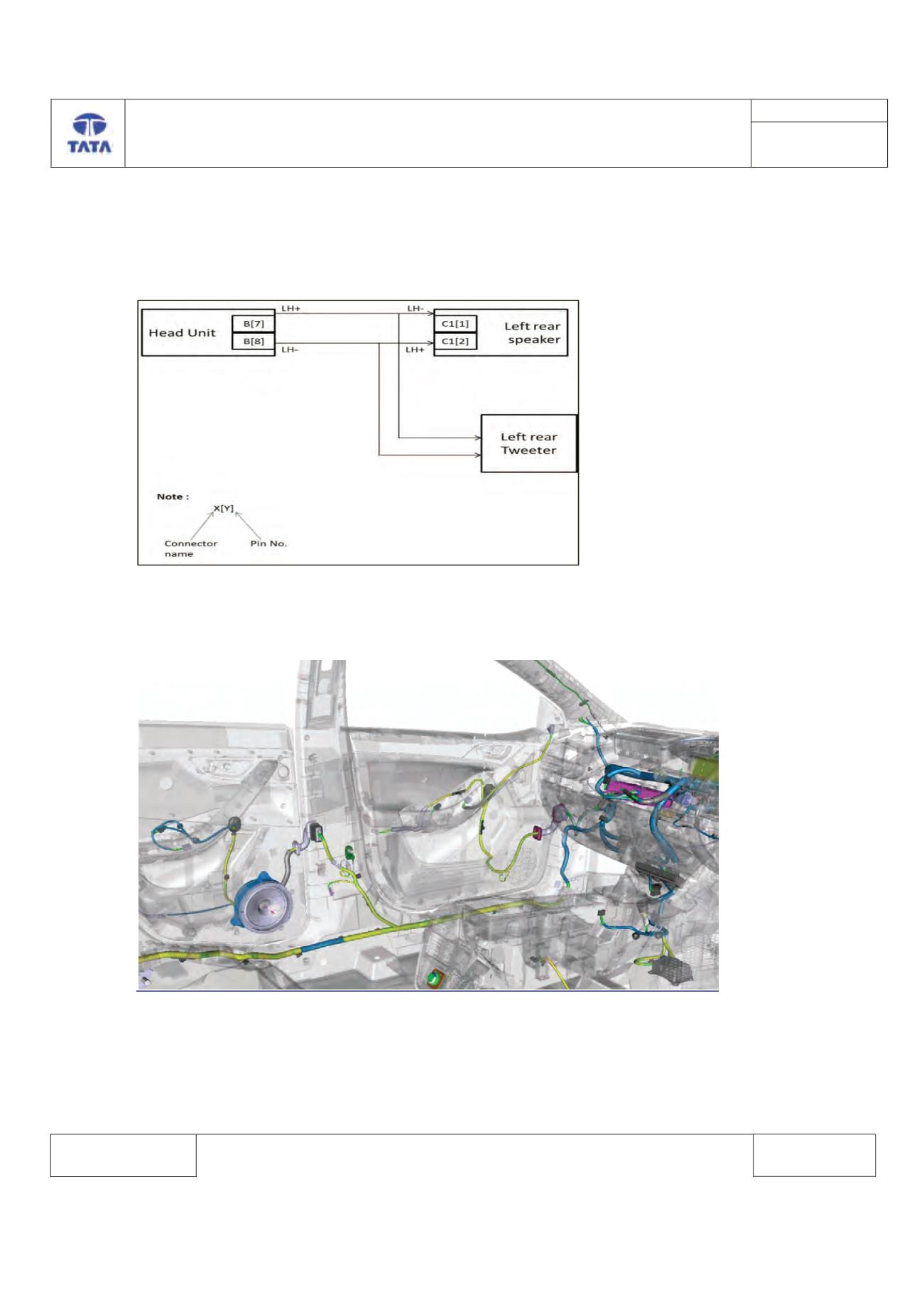

Circuit Schematic Diagram:-
Component location & Image:-
