Nexon Gasoline – EMS ECU Bosch
DTC Troubleshooting Manual
Version: 0.1
Date: 26-08-2017
Prepared By: Sunu S Babu/Yogesh Jadhav
Checked By: Yeshwant Jadhav
Approved By: Satish Kumar
Document Part No: 2921 02 224 A1736
Page: 206 of 1203
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

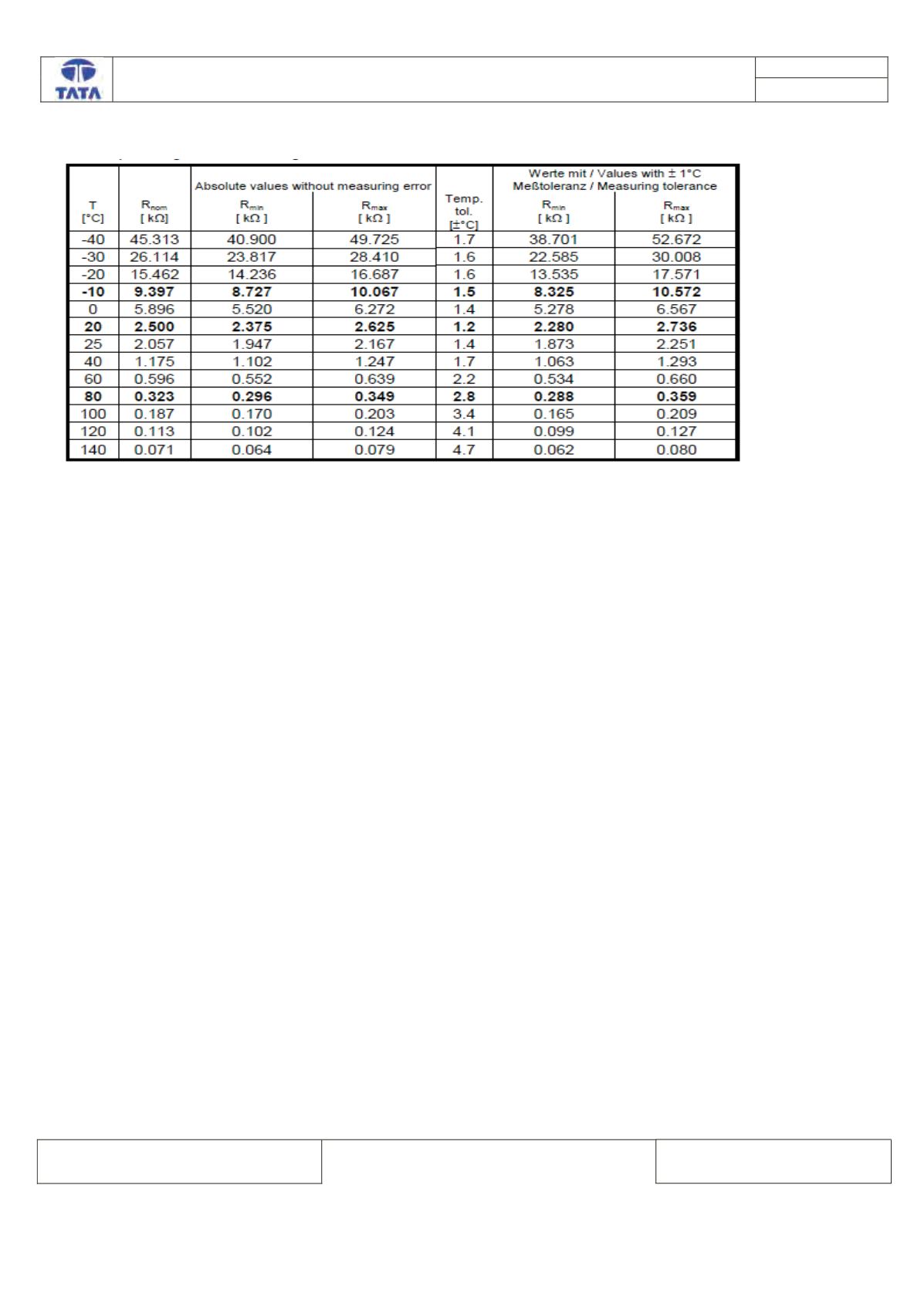

Table 1 :-
Sensor Resistance Vs Temperature Value
Standalone Component Diagnosis:
1. Measure the temperature between the Sensor terminals. At room temperature of 35 degrees, the
resistance shall be 1763 Ohms.
