DTC’s confirmation:
After rectification, ensure the following points by using TML diagnostic tool before handling over to customer.
1. Switch IGN ON -> OFF
2. Press Lock button on UID or Driver door close to open to trigger ESCL lock.
3. Switch IGN OFF->ON and read DTC. ESCL shall not log B1022-96 DTC.
Circuit Schematic Diagram:
NA

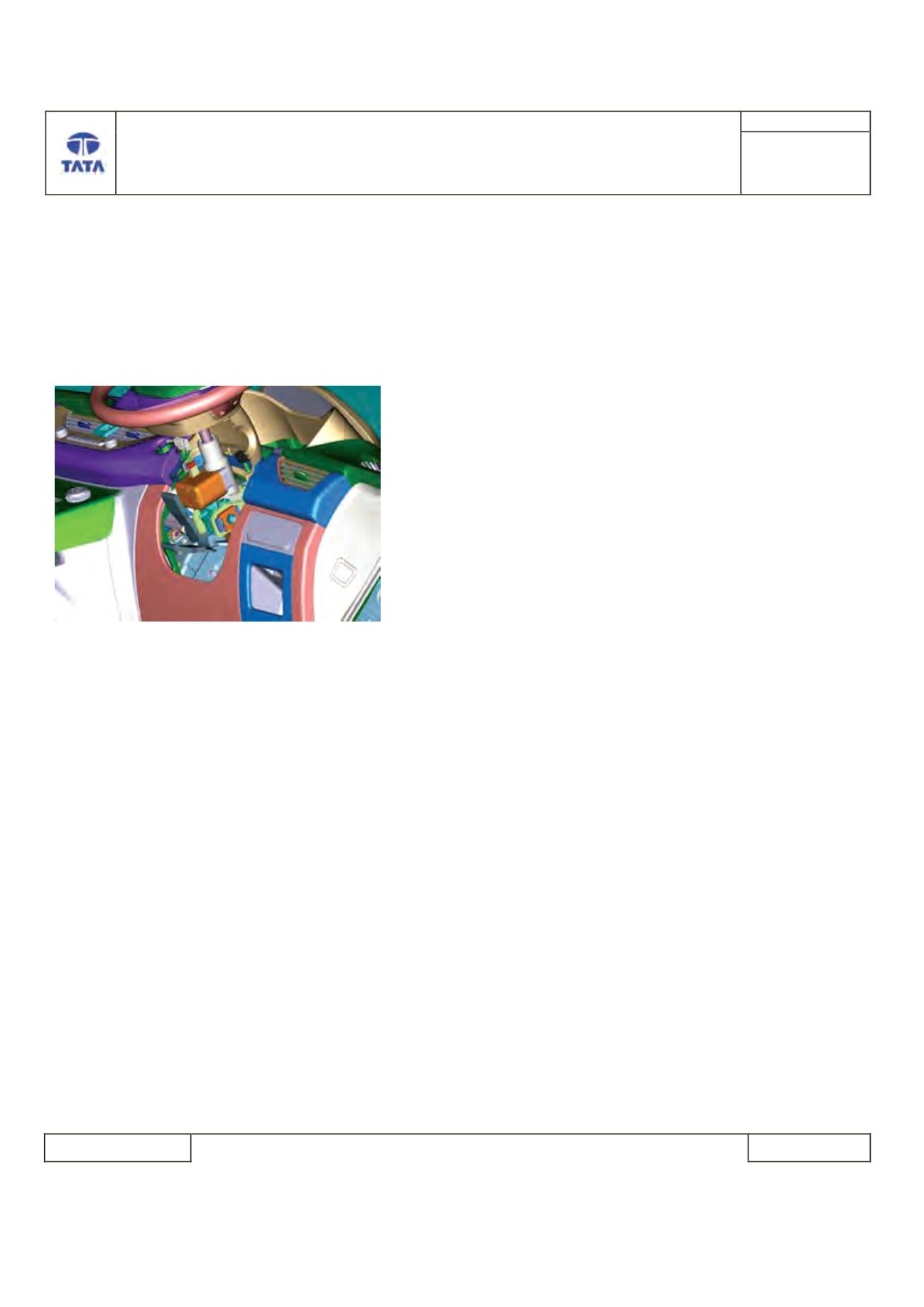

Component Location & Image:
Connector Location:
NA
Connector View& Information:
NA
Inspection Method:
1. In Ignition off condition, verify steering wheel gets lock on driver door open/ close or on pressing lock button on
UID.
2. Turn ignition OFF->ON, verify steering wheel gets unlock.
