PSCM
DTC Troubleshooting Guide for Nexon
Version: 1.1
Date: 21/06/2017
Author: E&E Chassis - ERC
Page: 63 of 156
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:
After rectification, ensure the following points before handing over the system to the customer
1) Replacement of EPAS as per
annex_2.
2) Drive the vehicle on road and check the assistance.
Circuit Schematic Diagram:
NA
Component Location & Image:

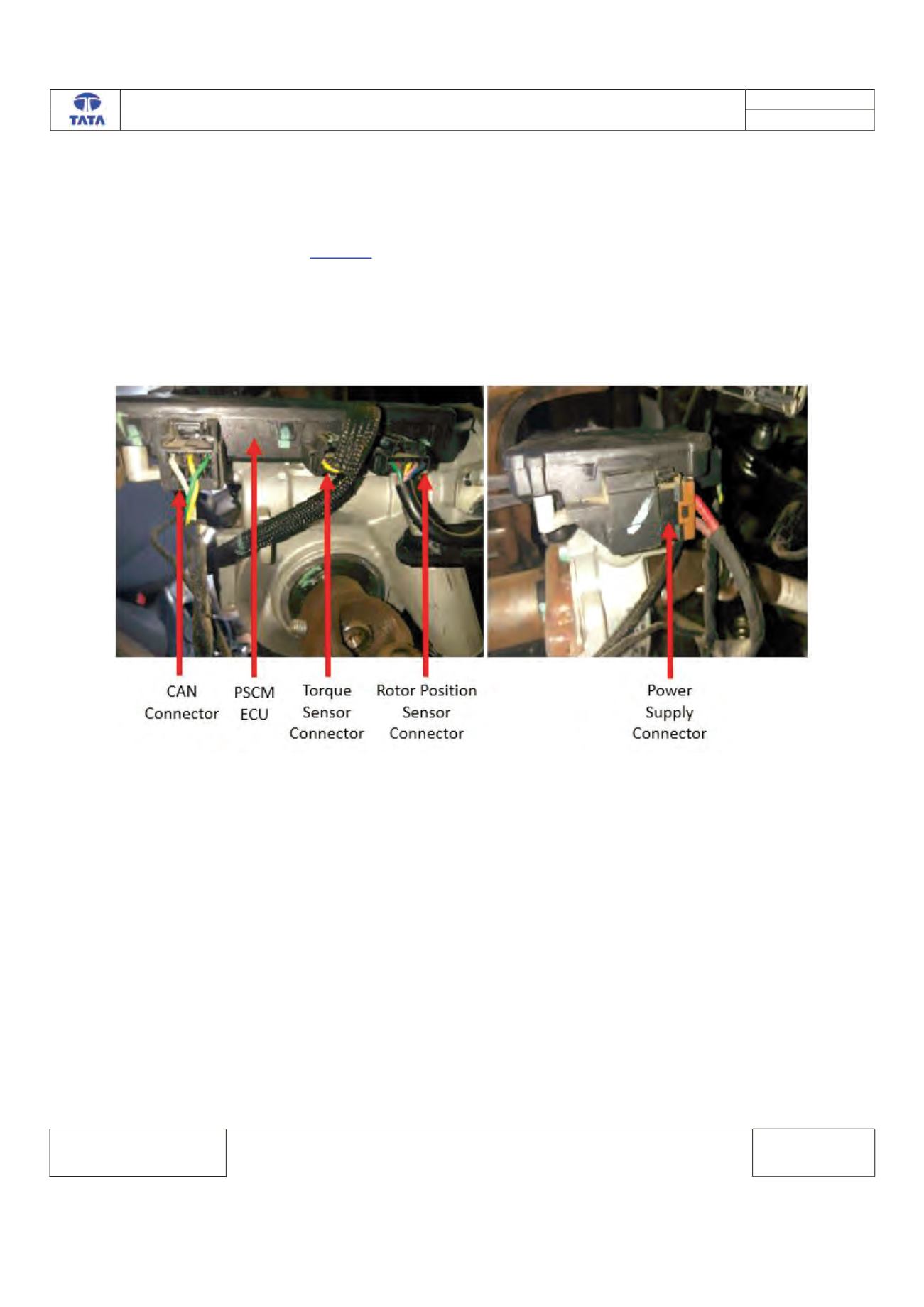

ECU is mounted on steering column under the dashboard.
Connector Location:
Shown above
Connector View & Information:
NA
Inspection Method:
NA
