ABS - DTC Troubleshooting Data
(Bolt, Zest, Tiago, Pelican, Nexon & Tigor)
Version: 1.4
Date: 21 April 2017
Author: ERC - Chassis E&E
Page 119 of 166
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

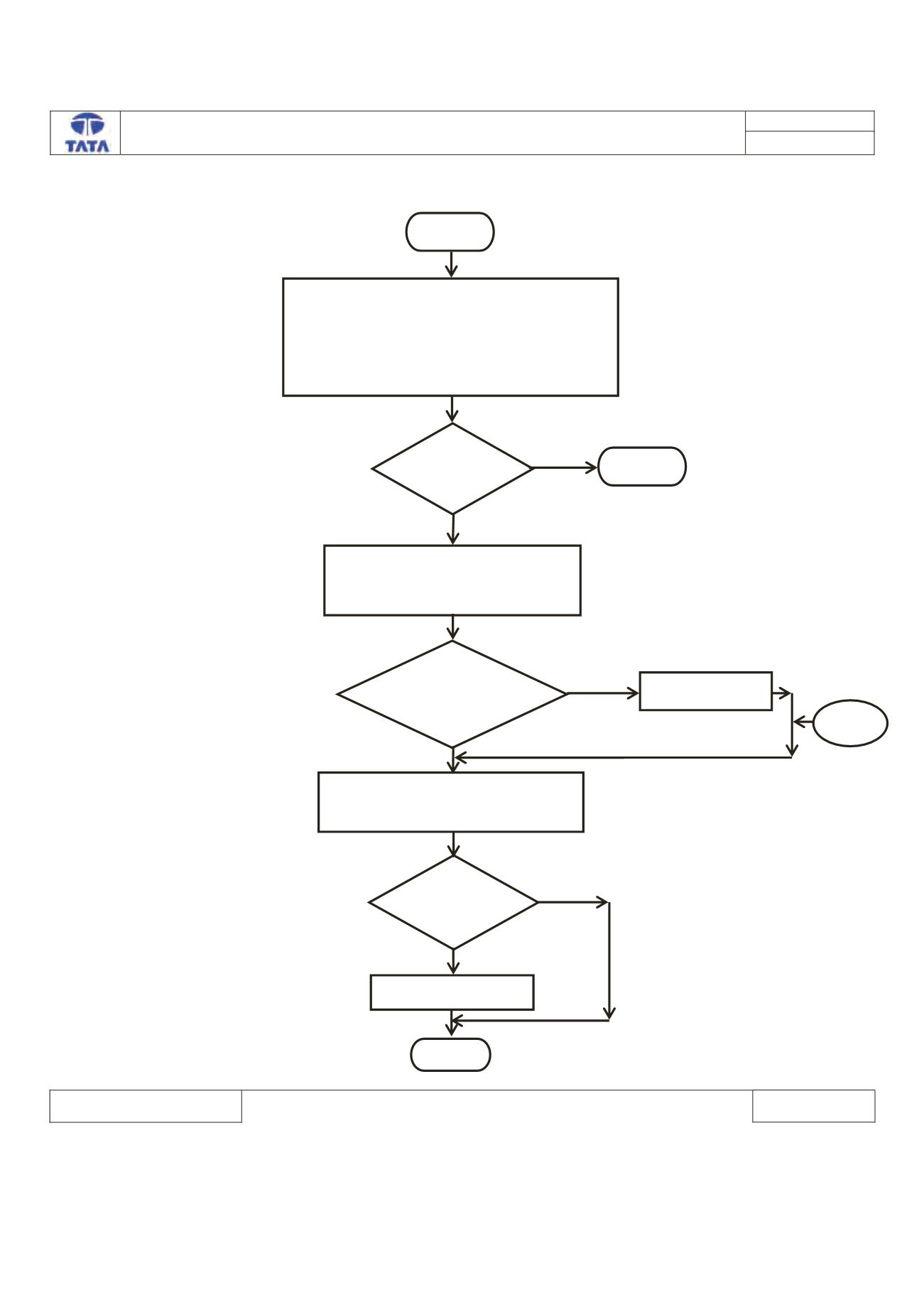

Trouble Shooting
CHECK WSS TOOTH WHEEL, WSS LAYOUT,
MOUNTING OF ECU IS AS PER ABS/ESP
INSTALLATION GUIDELINES
YES
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C006B-06 IS PRESENT
IS EVERYTHING AS
PER GUIDELINES?
1. CLEAR THE DTC FROM THE MEMORY.
2. PERFORM IGNITION OFF/ON.
3. CHECK THE DTC
YES
NO
REPLACE THE ECU
STOP
IS DTC
PRESENT?
NO
FIX THE PROBLEM
B
YES
