DTC’s confirmation:-
After rectification, ensure the following points by referring engine parameters using TML diagnostic tool before
handing over to customer.
1. Boost pressure value reads by the ECU is = Atmospheric pressure at ignition key is on.
2. Boost pressure value reads by the ECU is < Atmospheric pressure when the engine is at idle.
3. Boost pressure value reads by the ECU is > Atmospheric pressure when the engine is at fly-up.

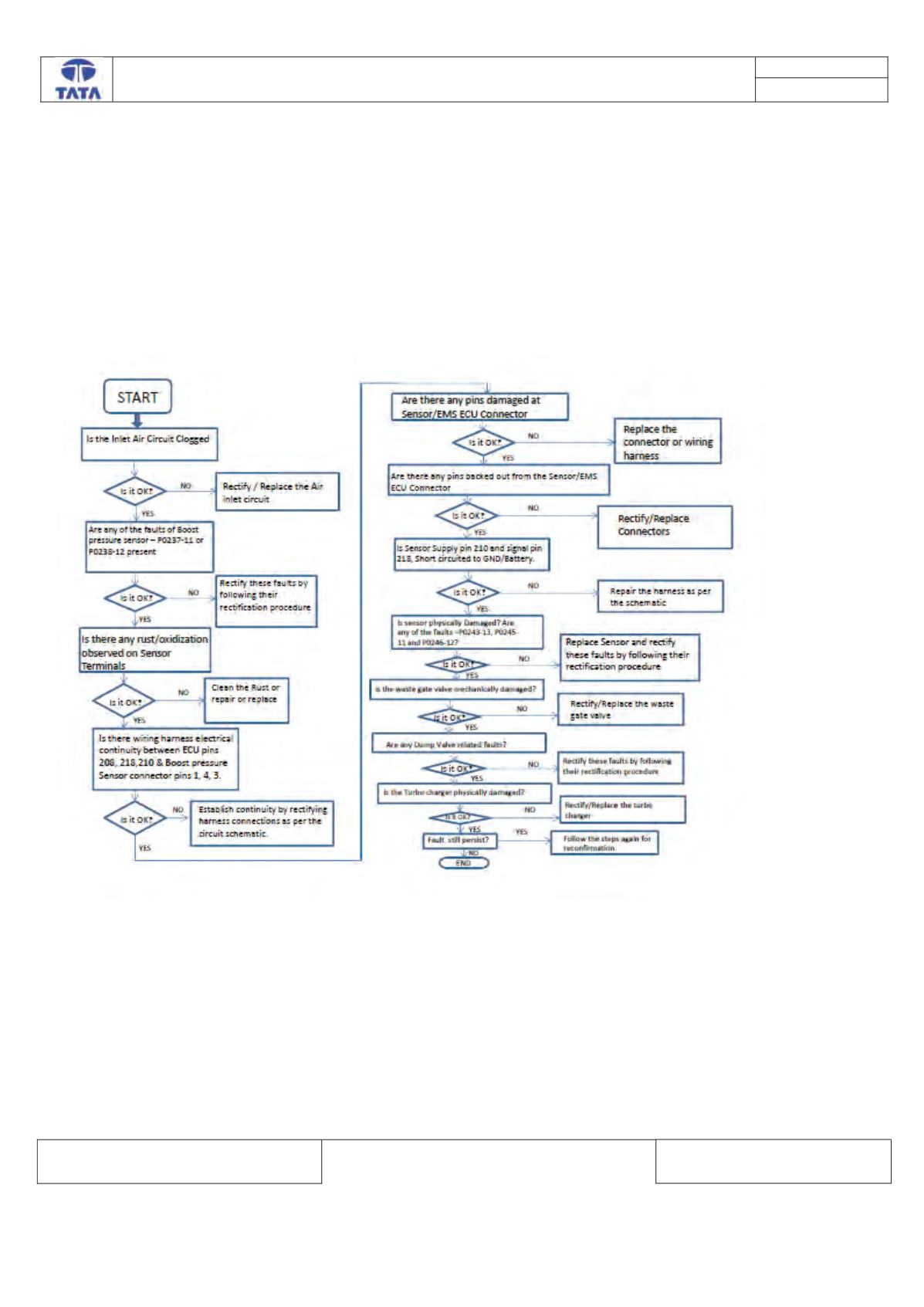

Flow Chart:-
