Write up for the Related system:-
PDC Activation Switch – This module is used to activate Park Assist in vehicle. ON pressing PDC
switch, Active LED is turned ON to indicate to whether park assist is active or inactive.
Pre-Check Points:
NO
Trouble Shooting:-
Below given flowcharts guides to troubleshoot the fault:
DTC’s confirmation:
Once DTC is rectified
Check 1:
Press PDC Activation switch and confirm LED turns ON and park assist gets activated
and displayed in HU screen.
Check 2:
After check 1, press PDC activation switch button and confirm LED turns OFF.

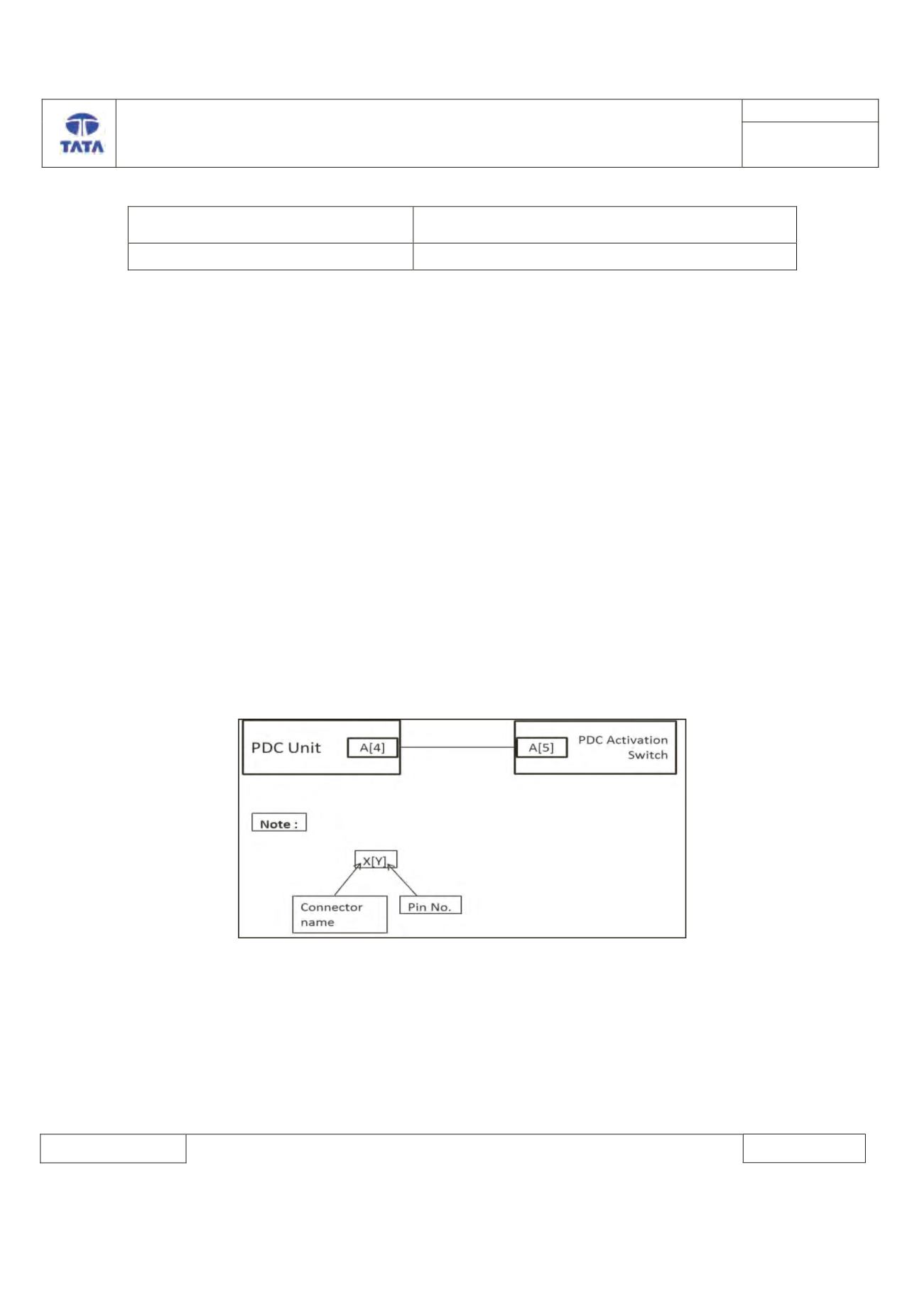

Circuit Schematic Diagram:-
x
PDC activation switch inside fascia.
Healing Condition
None
