NEXON DIAGNOSTIC MANUAL

TML Park Distance Controller (PDC) ECU DTC

Troubleshooting guide for Nexon

Version: 0.2

Date: 08Jun17

Author:

Ravi Teja

Page: 100 of 123

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of

author.

DTC’s confirmation:-

After rectification, ensure the following points using TML diagnostic tool before handing over to

customer.

a) DTC should not be present in ECU memory.

Circuit Schematic

Diagram:-N.A

Component Location & Image:- N.A

Connector Location: N.A

Connector View & Information:

N.A

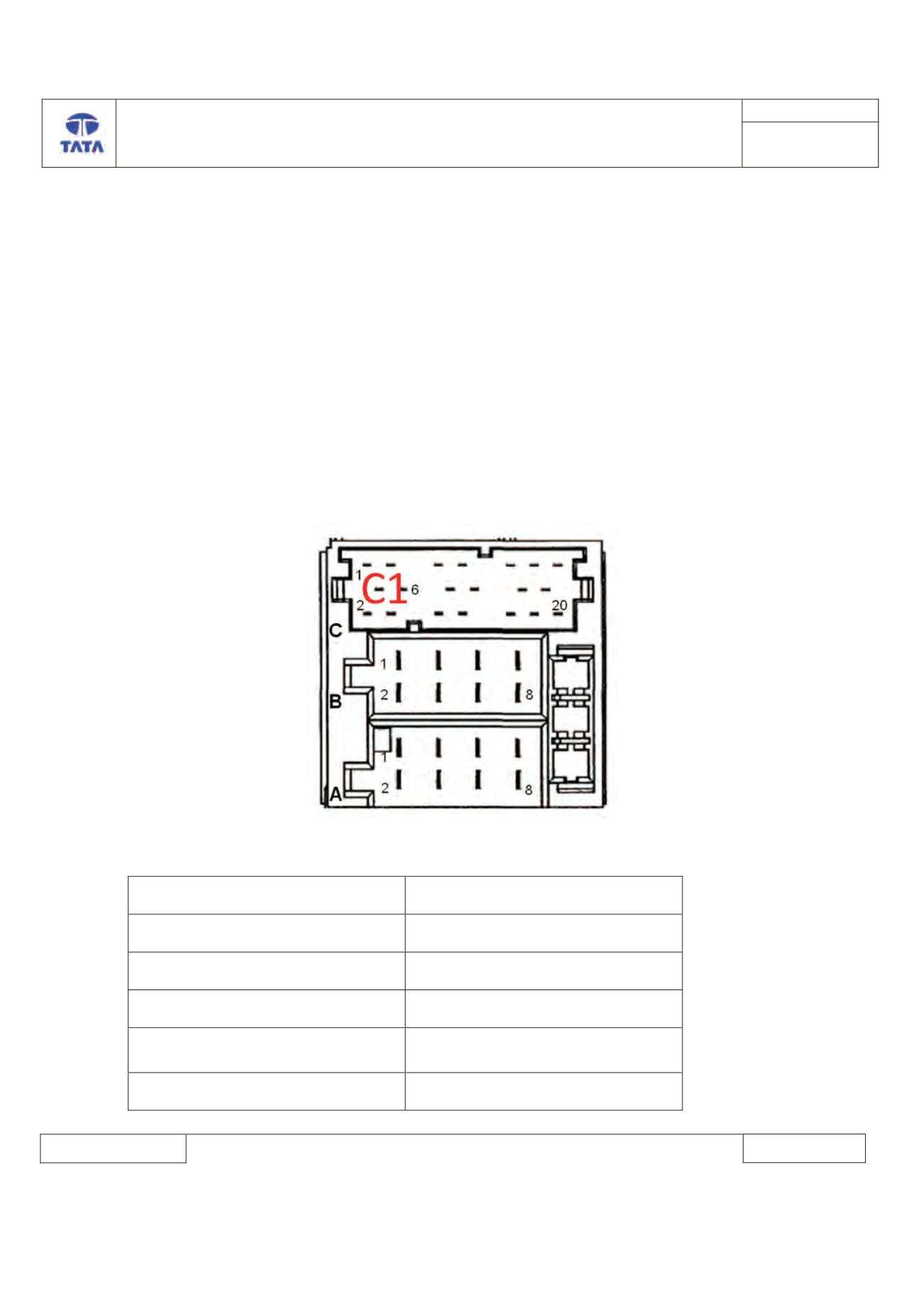

ECU Side Connector:

HU ECU Pin assignment:-

Description

ECU pin

CAN_H

2(Connector-C1)

CAN_L

5(Connector-C1)

Battery

7(Connector-B)

Ignition input

5(Connector-B)

Battery ground

8(Connector-B)
