TML Park Distance Controller (PDC) ECU DTC
Troubleshooting guide for Nexon
Version: 0.2
Date: 08Jun17
Author:
Ravi Teja
Page: 101 of 123
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of
author.

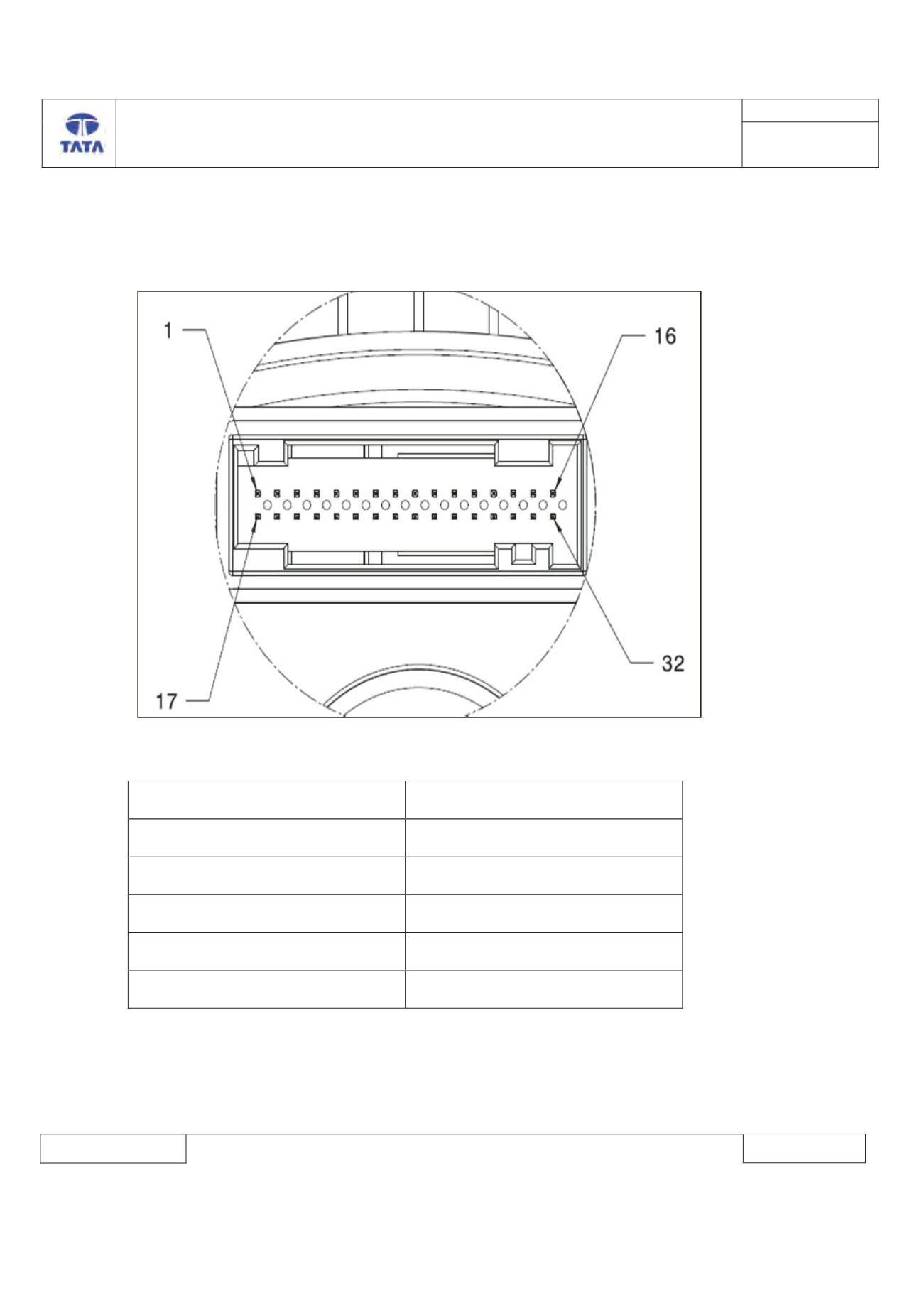

IPC ECU side connector diagram
IPC ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
6
CAN_L chasis
5
Battery
1
Ignition input
22
Battery ground
24
Inspection Method: - N.A
