Nexon Gasoline – EMS ECU Bosch
DTC Troubleshooting Manual
Version: 0.1
Date: 26-08-2017
Prepared By: Sunu S Babu/Yogesh Jadhav
Checked By: Yeshwant Jadhav
Approved By: Satish Kumar
Document Part No: 2921 02 224 A1736
Page: 888 of 1203
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
P2089-12: “A” Camshaft Position Actuator Control Circuit High– Circuit Short to Battery
Overview:
ISO Code
P2089-12
Customer Symptom
MIL getting ON.
Fault Effects (On Vehicle)
It will not affect drive ability. Emission will get affected.
Lamp Status (If Any)
MIL ON after 1 drive cycle
Fault Detection Condition
This fault gets logged when (VVT in)Camshaft Position
Actuator Circuit - Circuit Short to Battery
Normal Operating Condition
Healthy Wiring Harness connections between VVT IN and
EMS ECU
Probable Trouble Area
Wiring Harness Connections, Sensor
Healing Condition
After 3 drive cycles
Fault permanent deletion
1. Clear DTC Command form Scan tool
2. Stack Over Flow.
3. 40 warm up cycles.
4. ECU Flashing.
5. ECU power fail
Component Details:

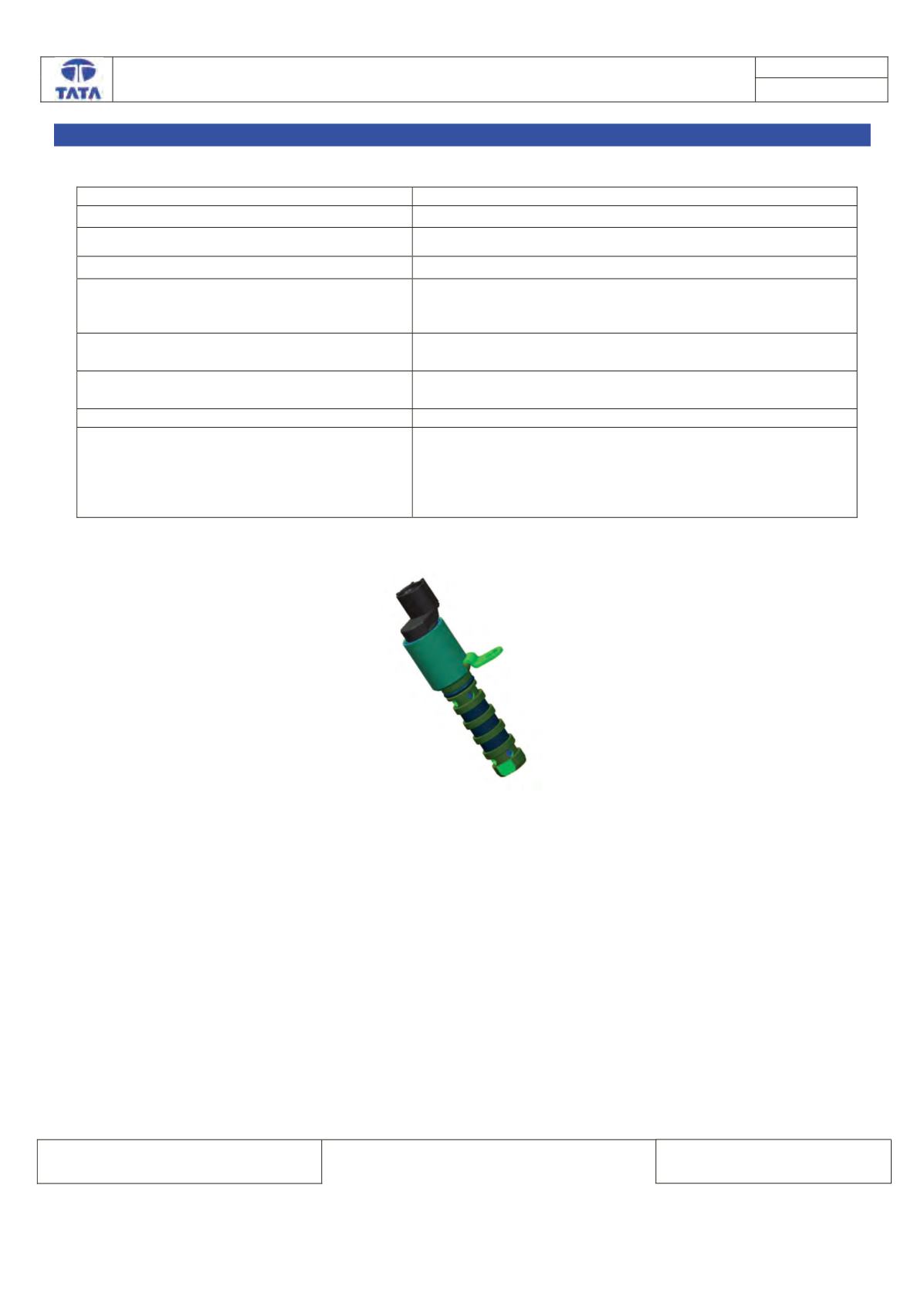

The variable camshaft timing oil control solenoid is attached to camshaft and is hydraulically operated in order to
change the angle of the camshaft relative to crankshaft position. The variable camshaft timing oil control solenoid is
controlled by the control module. The control module sends a pulse width modulated 12 volt signal to a variable
camshaft timing oil control solenoid. The solenoid controls the amount of engine oil flow
