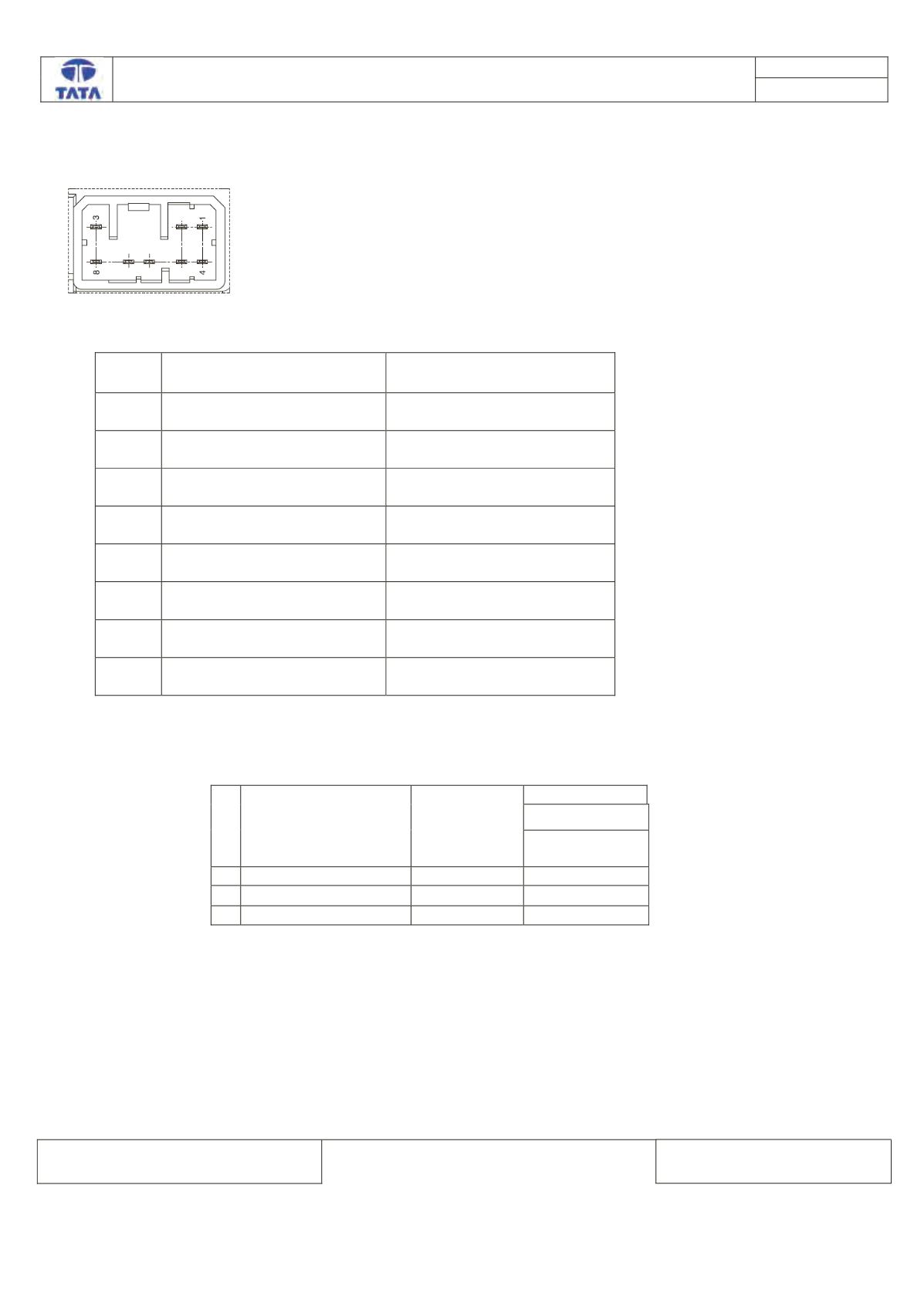

Connector View & Information: -
Immo Connector info
Pin # Signal name
I/O
1
+Vbatt
Power
2
Gnd
Power
3
CAN_H
communication
4
+Ign
Input(Active High)
5
Status LED
Output(Active Low)
6
Key Illumination (from BCM)
Power (Active Low)
7
Transport Mode
Input (Active High)
8
CAN_L
communication
EMS connector info:
# Description
Immobilizer
pin
Nexon
Xeta Turbo
CUBE (Bosch)
pin no.
1 CAN High
3
132
2 CAN Low
8
144
3 Status LED
9
NA
