DTC’s confirmation (checks before handing over vehicle to customer):
x
Rail pressure at ignition key on is < 10 bar,
x
By removing the rail pressure sensor connector, Diagnostic tool shall display rail pressure value of 2000 bar,
x
High pressure leak detection test can be carried out
x
Please drive the vehicle on road with adequate fuel in tank, check and ensure rail pressure feed-back follows the
demand continuously. Check the errors at Ignition ON, engine running @ Idle & Fly-up with different vehicle
speeds also
x
Confirm that there are no errors logged by EMS before handing over the vehicle back to customer.

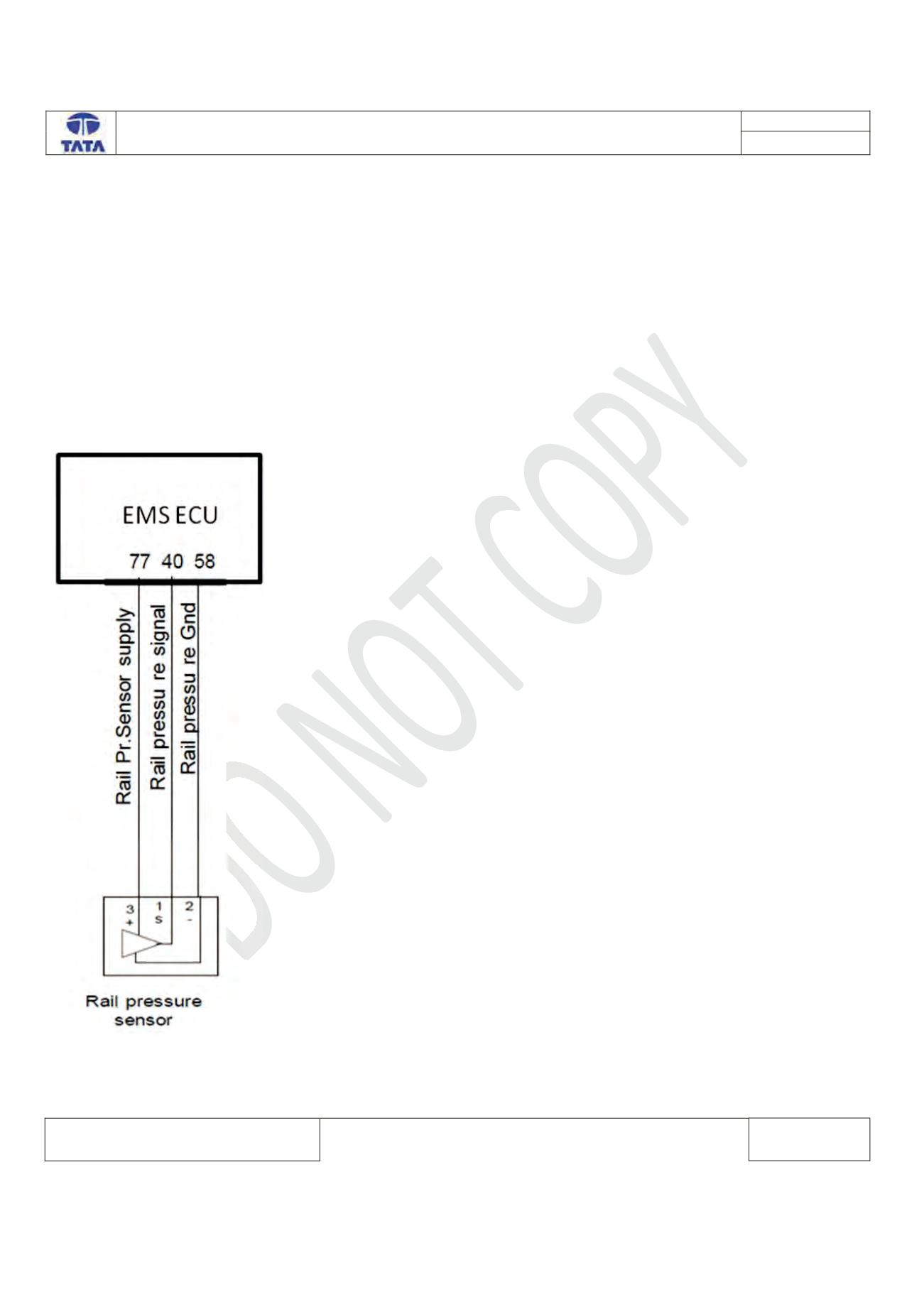

Circuit Schematic Diagram:
