OSPREY- Application
DTC Troubleshooting Data
Version: 4.0
Date: 10-02-2017
Prepared by: Mithipati Prasad
Checked by: G S Raju / Senthilnathan S
Page: 345 of 654
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation (checks before handing over vehicle to customer):
After rectification, ensure the following points by referring engine parameters using TML diagnostic tool before handing
over to customer -
1. Accelerator pedal is not pressed - Pedal position in diagnostic tool should be less than 5%.
2. Accelerator pedal is fully pressed - Pedal position in diagnostic tool should be more than 95 %
3. Drive the vehicle on road to feel the accelerator pedal response in different vehicle speed & in different gear
conditions

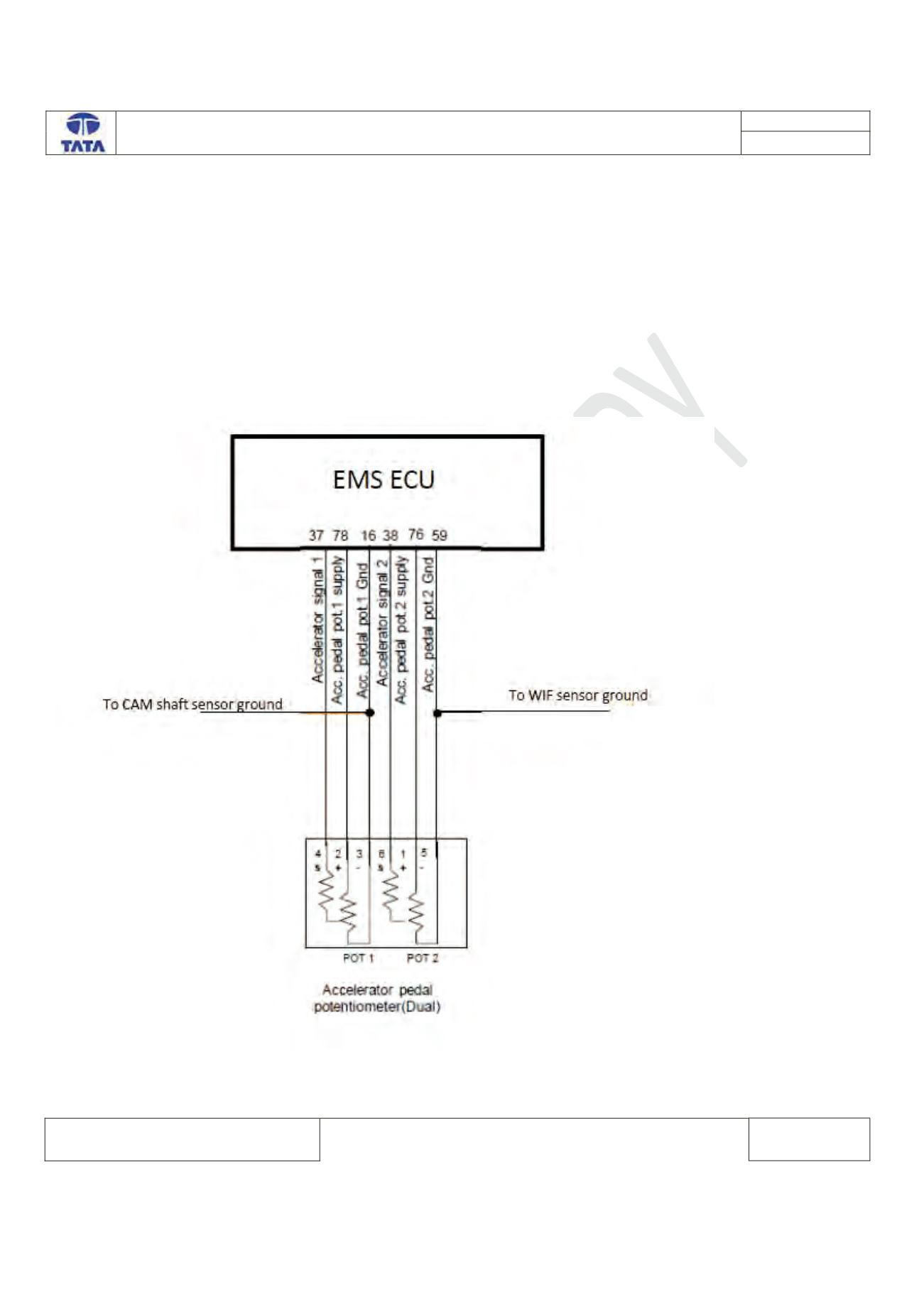

Circuit Schematic Diagram:
