as per the
schematic.
4
Check the wiring harness continuity between the EMS ecu
pin 17 and TCU pin 16. Any problem found?
Establish the
continuity by
performing
necessary repairs
Go to Next step
5
Fault Still Persists?
If fault still persists
then Call hot line.
Repeat the
procedure for Fault
Confirmation
DTC’s confirmation:
After rectification, ensure the following points:
x
Crank the vehicle, vehicle should crank.
x
Ensure that no DTC’s are logged by
EMS before handing over the vehicle to customer.

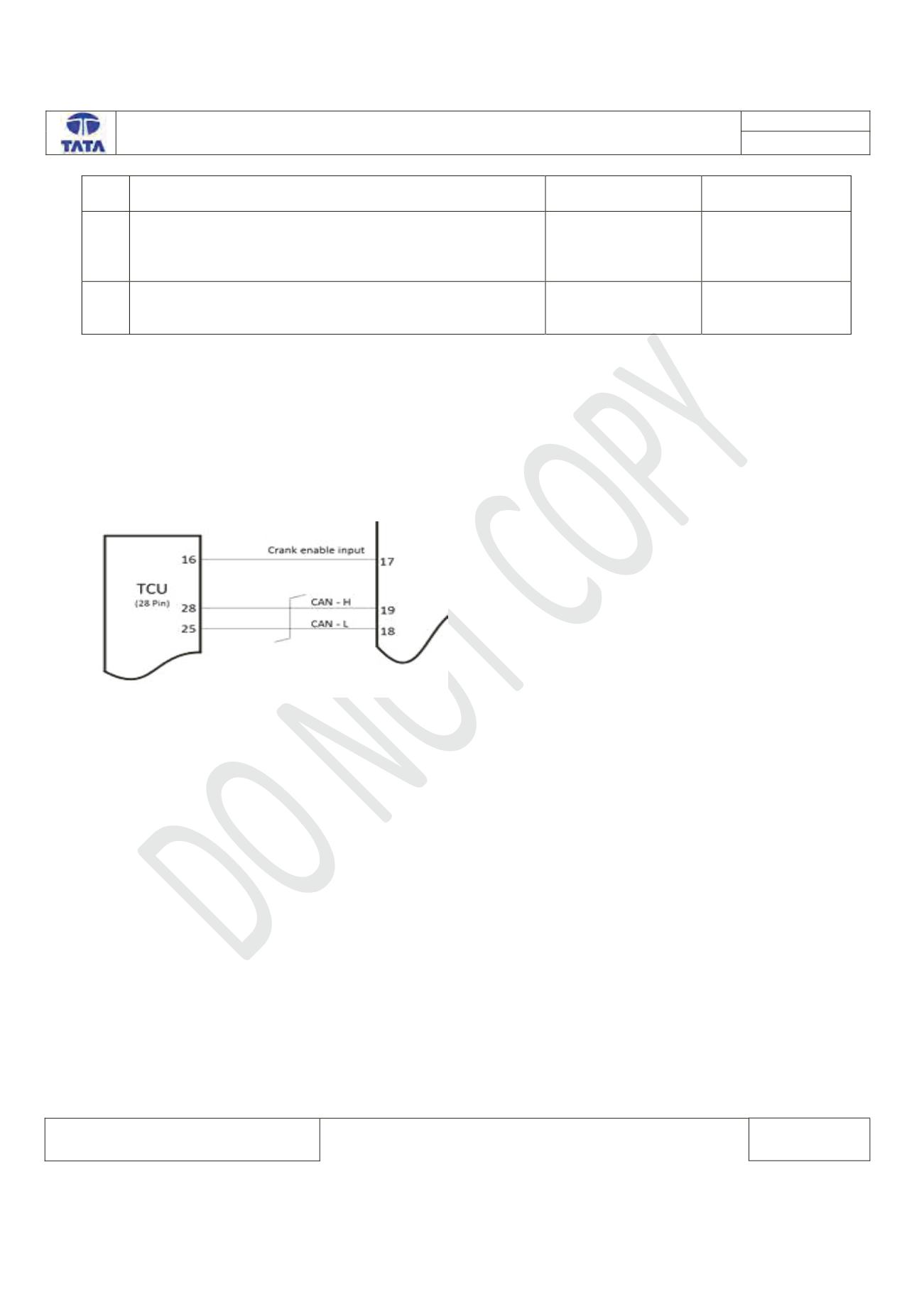

Circuit Schematic:
Component Location and Connector Location:
NA
Connector View – Wiring Harness Side
NA
EMS
ECU
