NEXON DIAGNOSTIC MANUAL

PVBU Applications: Procedure for EMS ECU

Replacement

PVBU Applications: Procedure for EMS ECU replacement

Doc No: 2921 XX XXXX XXXX

Date: 19 Feb 2016

Revision: 0.1

Page 8 of 16

Prepared: Priti Pandey

Checked: Mithipati Prasad

Approved: G.S.Raju/ Vilasini

Prabhu

This document contains confidential information which is exclusive property of TML. The contents of this

document shall not be reproduced, or conveyed, or given to third parties in any manner without the consent

of TML.

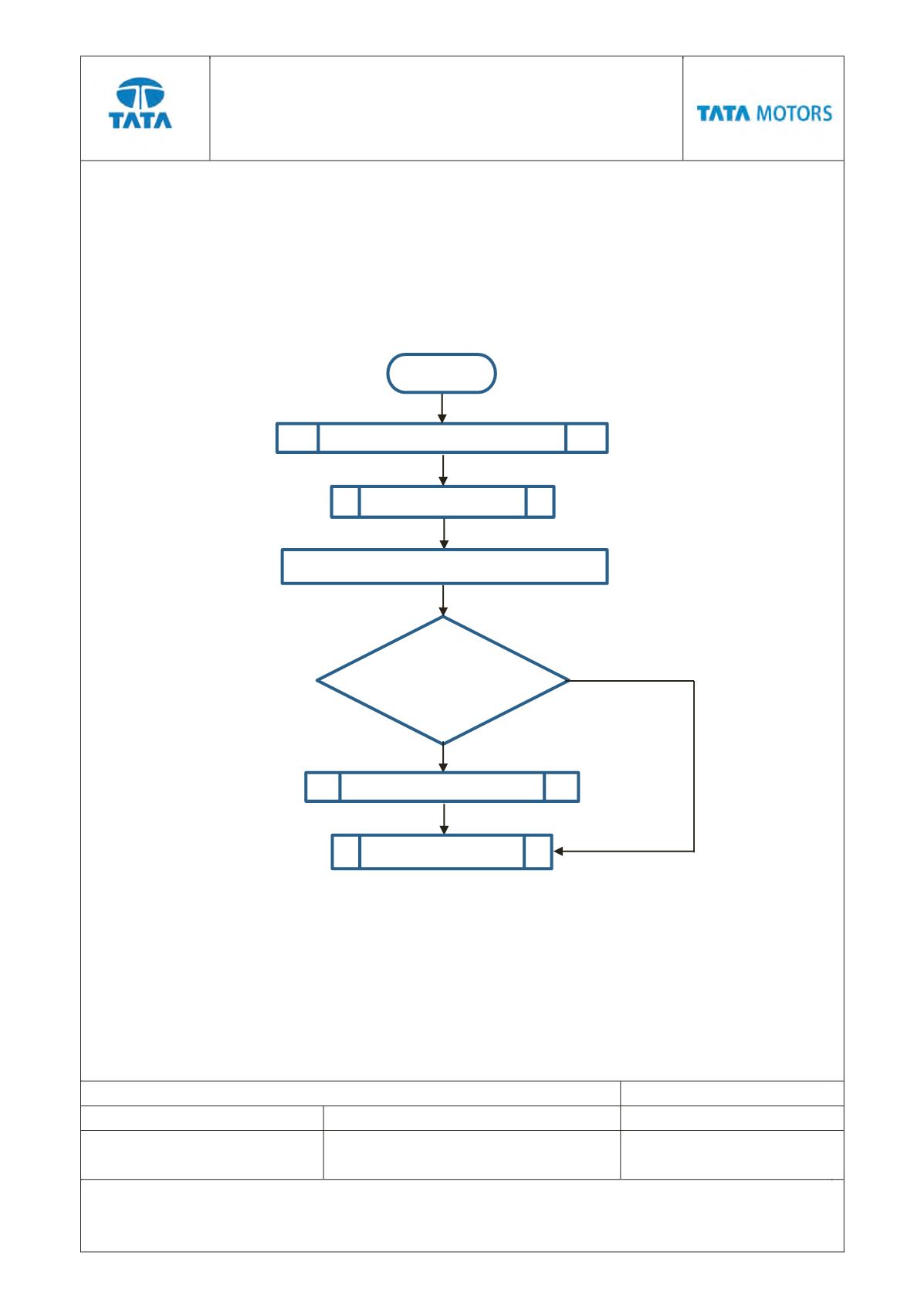

EMS ECU Replacement and Flashing/programming process:

Whenever any vehicle’s EMS ECU is replaced with a Virgin/Fresh EMS ECU or a new software version to be

flashed or new software calibration to be re-flashed in an EMS ECU, following steps to be followed after

turning Ignition ON:

Flash EMS ECU using online flashing tool

Perform variant coding*

Whether Injector

code matching with

the injector tag?

Read Injector code from EMS using Tata diagnostic tool

Perform Injector learning process

Start SPCS update routine

Yes

Start
