PSCM
DTC Troubleshooting Guide for Nexon
Version: 1.1
Date: 21/06/2017
Author: E&E Chassis - ERC
Page: 10 of 156
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

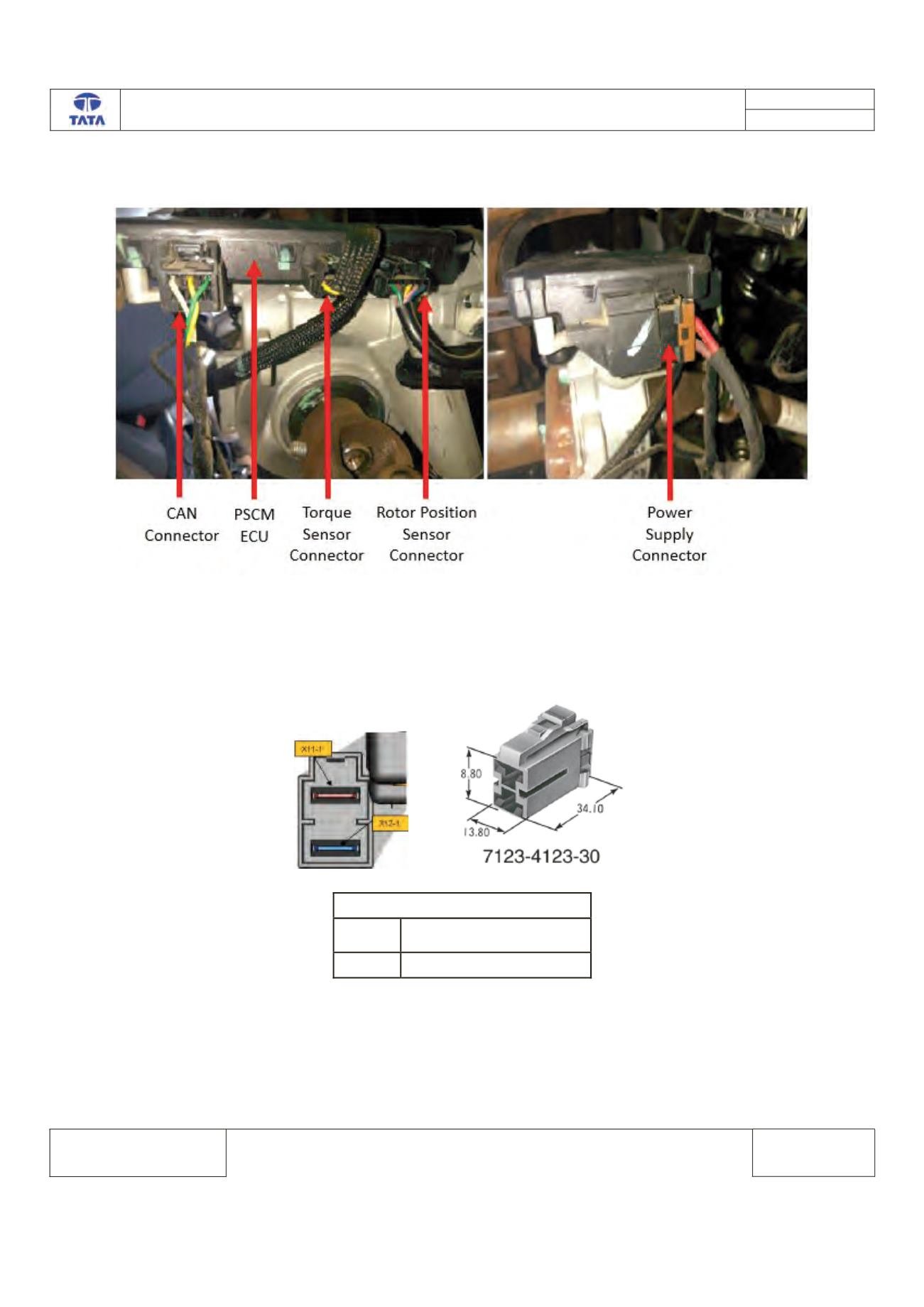

Component Location & Image:
ECU is mounted on steering column under the dashboard.
Connector Location:
Shown above
Connector View & Information:
PSCM ECU power supply connector
Inspection Method:
NA
Power Supply Connector
X11-1 Battery positive(VBATT+)
X12-1
GND
