DTC Troubleshooting Guide for Nexon
Version: 1.1
Date: 21/06/2017
Author: E&E Chassis - ERC
Page: 70 of 156
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:
After rectification, ensure the following points before handing over the system to the customer
1) Battery Voltage is between 9 to 16V.
2) Replacement of steering column as per
annex_2.
3) Drive the vehicle on road and check the assistance.

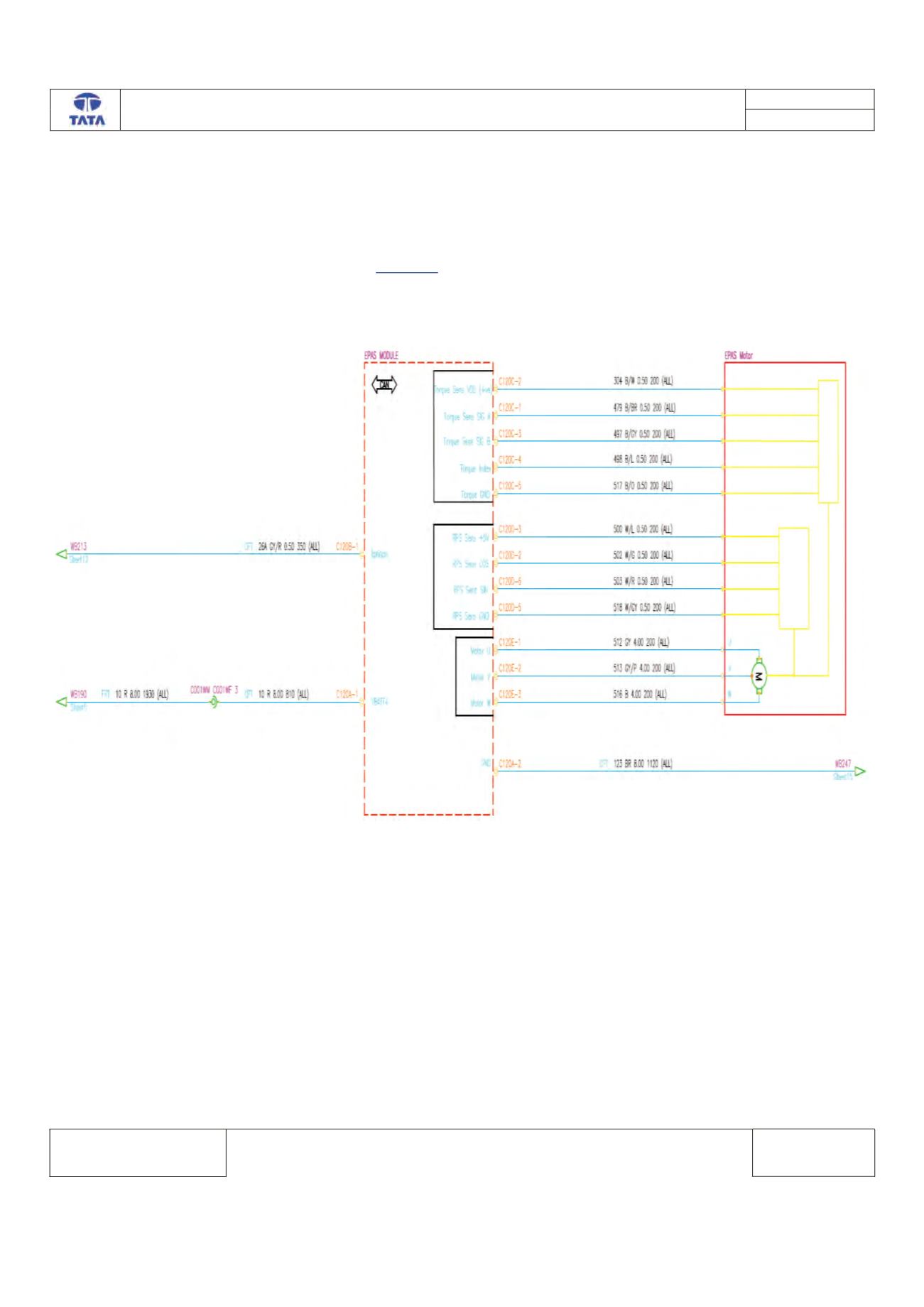

Circuit Schematic Diagram:
