OSPREY- Application
DTC Troubleshooting Data
Version: 4.0
Date: 10-02-2017
Prepared by: Mithipati Prasad
Checked by: G S Raju / Senthilnathan S
Page: 242 of 654
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation (checks before handing over vehicle to customer):
x
Please fit the EGR & ECU connector.
x
Check the errors at Ignition ON, engine running @ Idle & Fly-up with different vehicle speeds also
x
If error present, then rectify the errors.
x
Confirm that there is no error logged in EMS before handing over vehicle to customer.
x
Run the actuator test for EGR valve and ensure result is positive.

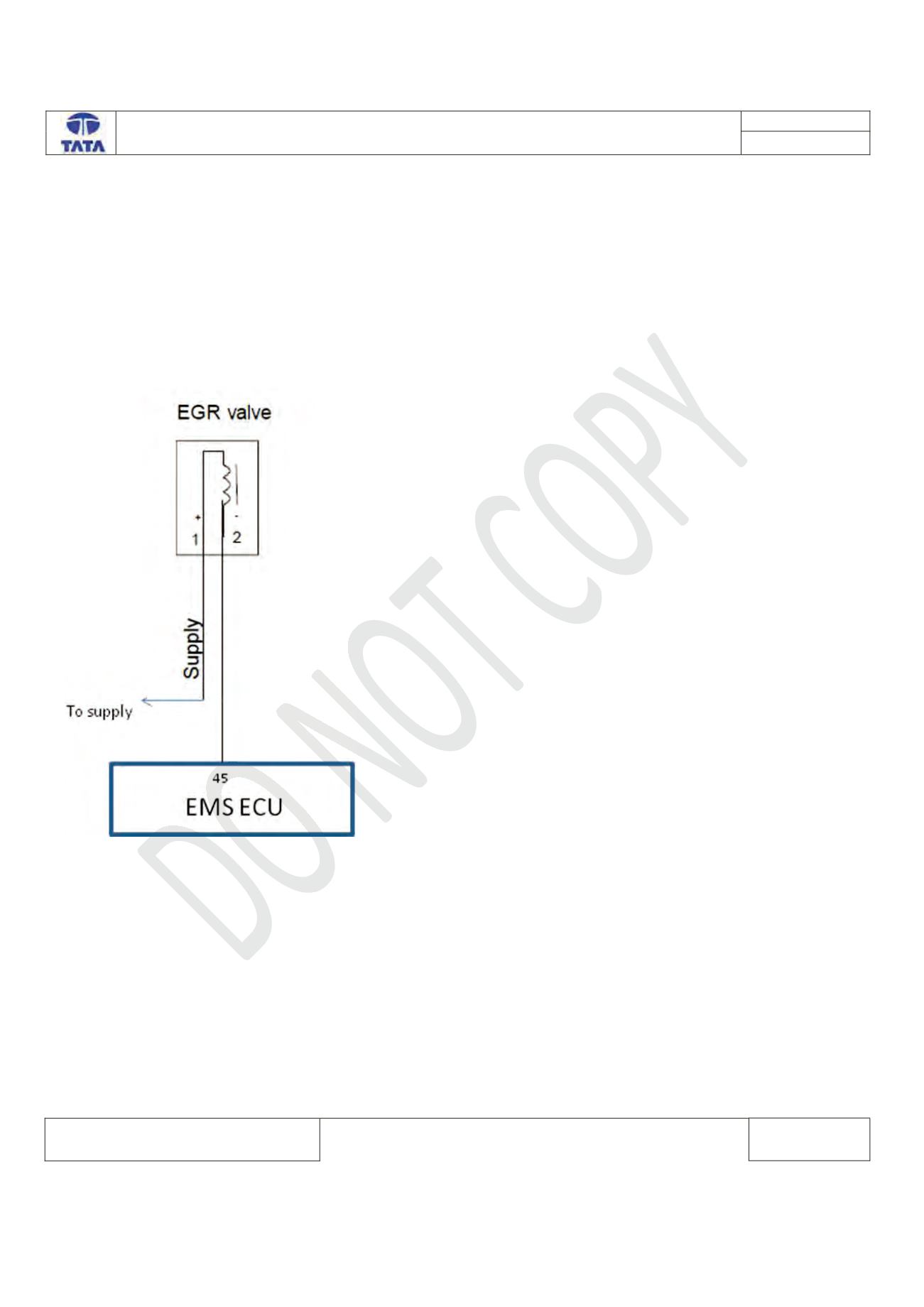

Circuit Schematic Diagram:
