DTC’s confirmation (checks before handing over vehicle to customer):
x
Read the Clutch State parameter in Diagnostic tool:
When clutch pedal is not pressed
–
Clutch Engaged
When clutch Pedal is partially pressed
–
Clutch Disengaged
When the clutch pedal is fully pressed
–
Clutch Fully disengaged
x
Ensure that there are no DTC’s logged by EMS before handing over the vehicle back to customer.

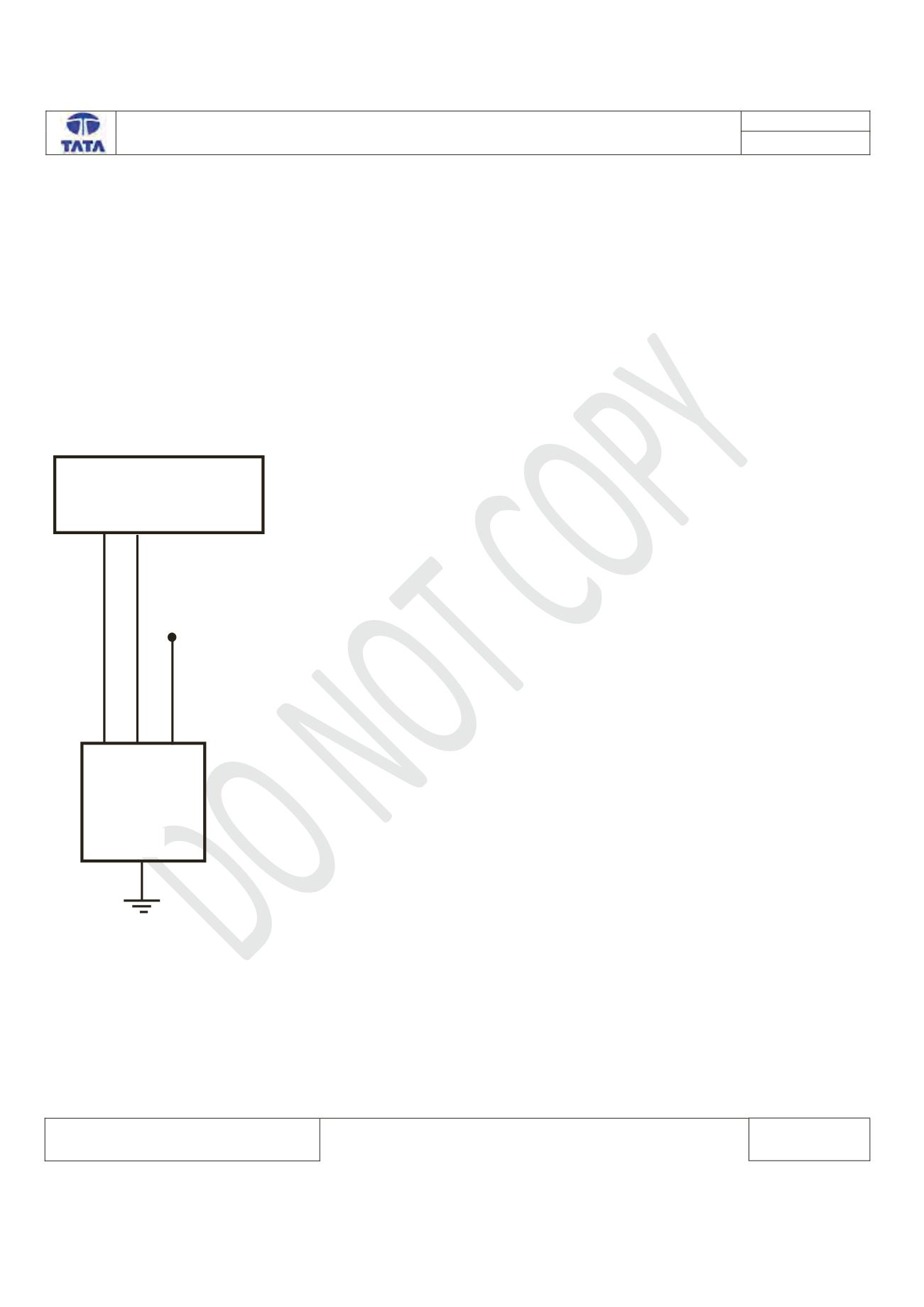

Schematic:
EMS ECU
50
17
Dual Position
Clutch Sensor
Extended Travel Input
Top Travel Input
Supply
3
2
1
4
