DTC’s confirmation:-
After rectification, ensure the following points before handing over the system to the customer.
1. Do the ignition ON & Off and check the communication errors by reading DTC’s from IPC.
2. Check the communication status between IPC & VICM in vehicle driving condition also.

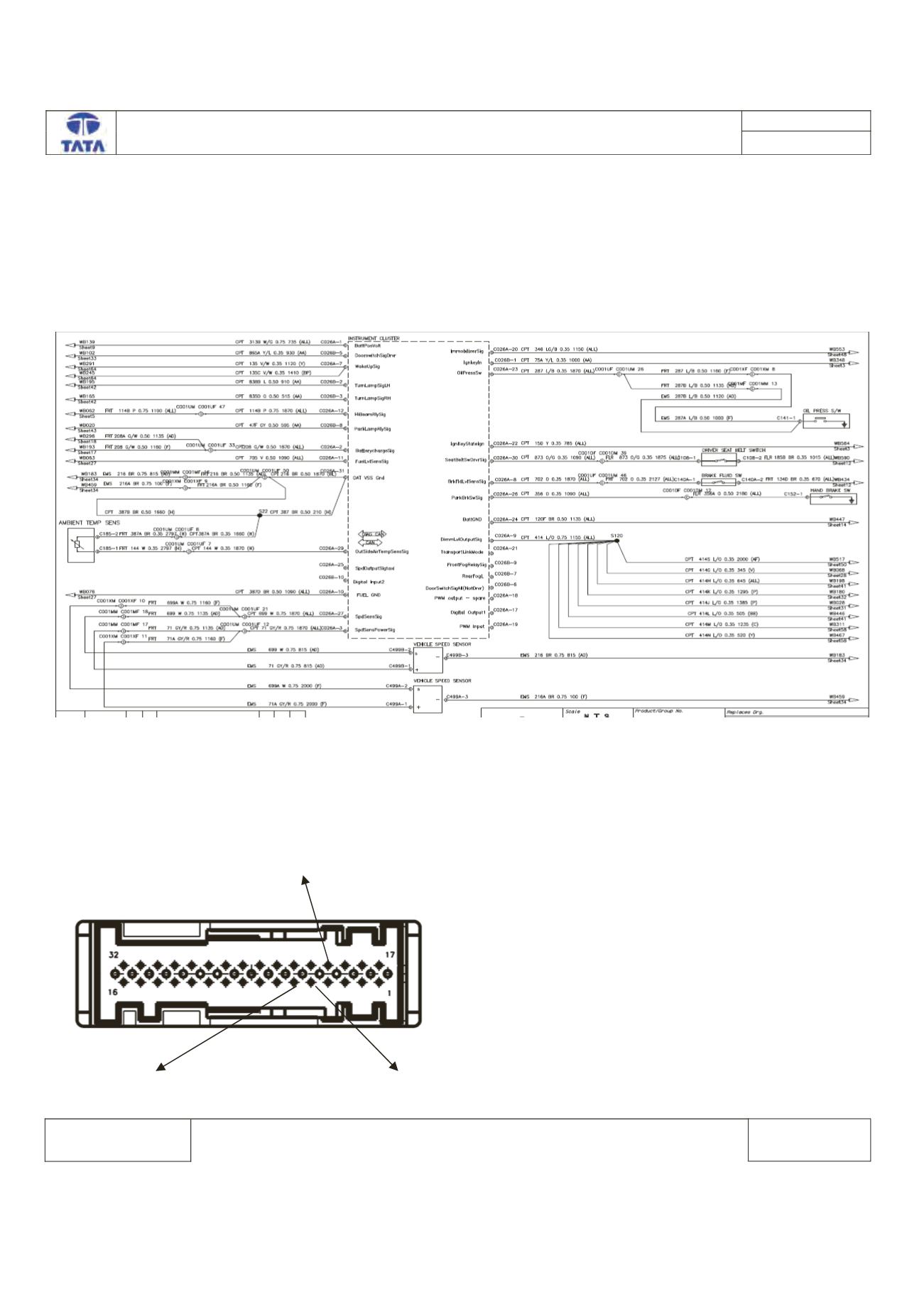

Circuit Schematic Diagram:-
Component Location & Image:-
N/A
Connector View & Information:-
Immo Lamp i/p Pin no.J1-20
CAN H (Pin no.J1-6) CAN L (Pin no.J1-5)
