TCM ECU Pin assignment
Vehicle
Connector-1
Pin No.
Pin Name
Description
45
CAN_H
CAN High
33
CAN_L
CAN Low
28
Ign
Ignition
27
Vbat
Supply Voltage Battery
1,2
GND
Battery GND

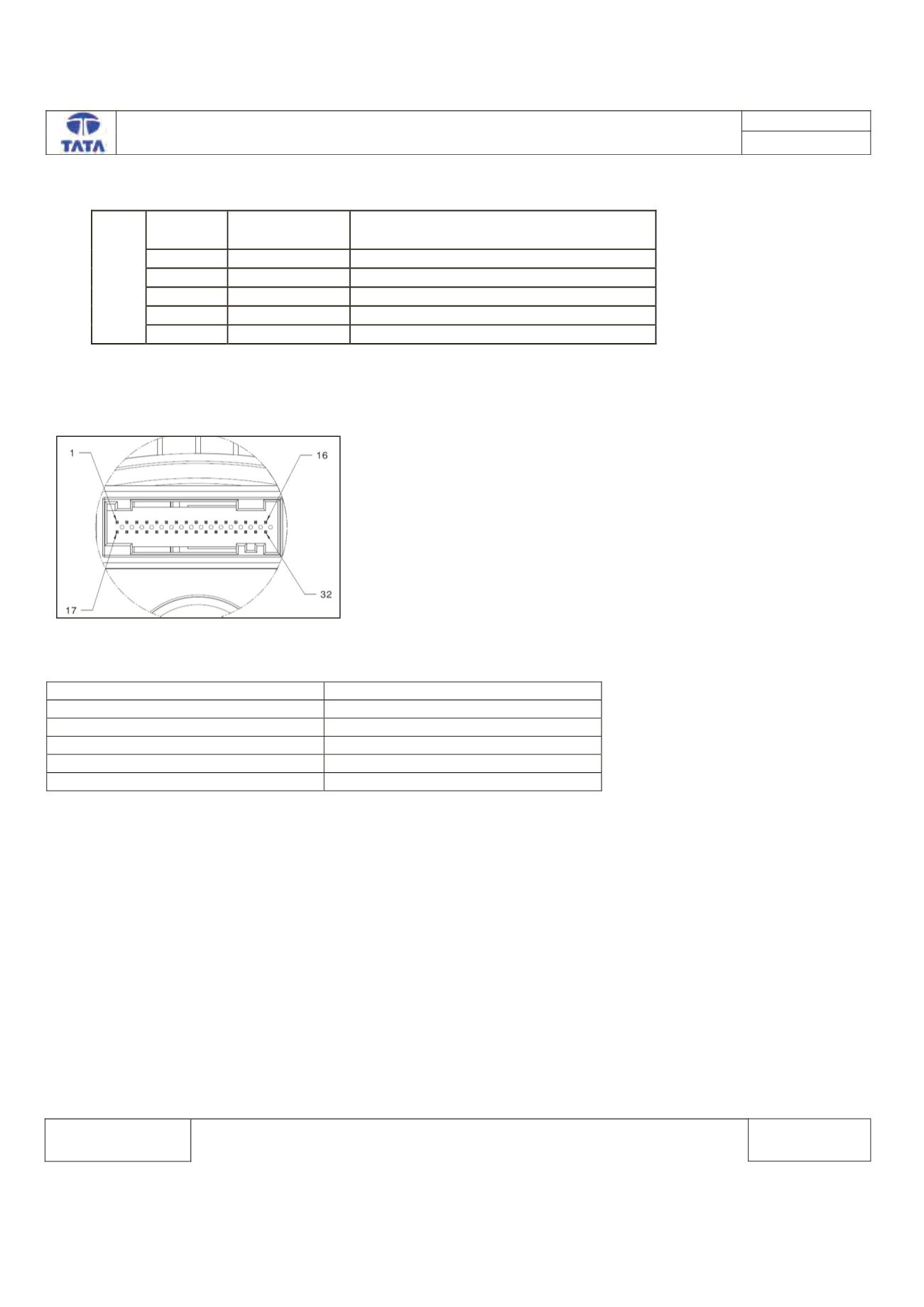

Connector View & Information: -
IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24
Inspection Method: -
N.A
