yϭϬϰ KƐƉƌĞLJ /ŶƐƚƌƵŵĞŶƚ ůƵƐƚĞƌ
d dƌŽƵďůĞƐŚŽŽƚŝŶŐ ĂƚĂ
sĞƌƐŝŽŶ͗ ϭ͘ϯ
ĂƚĞ͗ ϮϬͲDĂƌĐŚͲϭϳ
Author: Balaji / Amar /
Nitin / Umapathi /
Deepak
Page: 100 of 138
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Connector View & Information: -
ECU side Connector

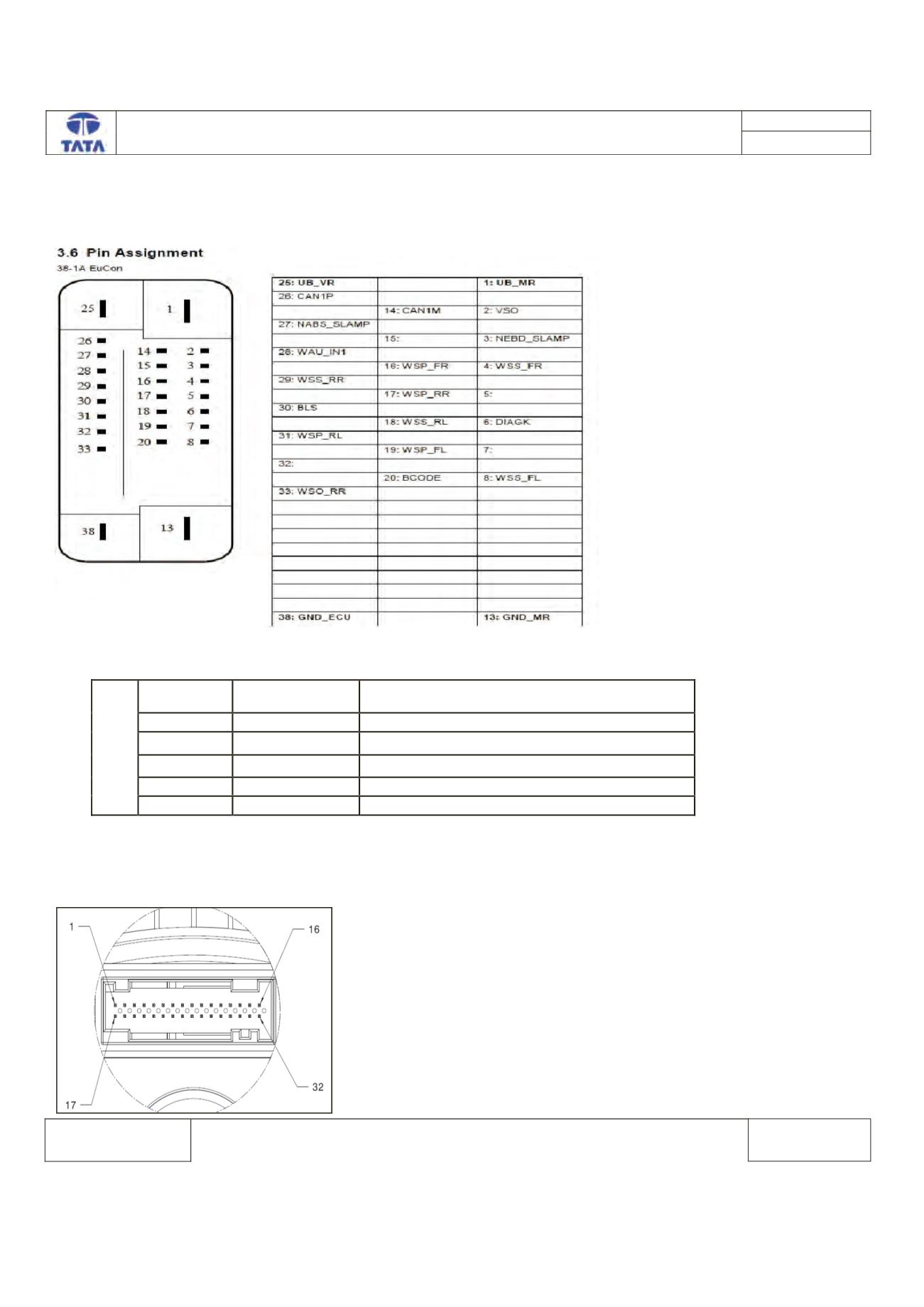

ABS ECU Pin assignment
Pin No.
Pin Name
Description
26
CAN_H
CAN High
14
CAN_L
CAN Low
28
Ign
Ignition
1,25
Vbat
Supply Voltage Battery
13,38
GND
Battery GND
Connector View & Information: -
IPC ECU side connector diagram
