DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a) Check whether SRSCU is communicating with diagnostic Tool or not.
b) DTC should not be present in ECU memory.

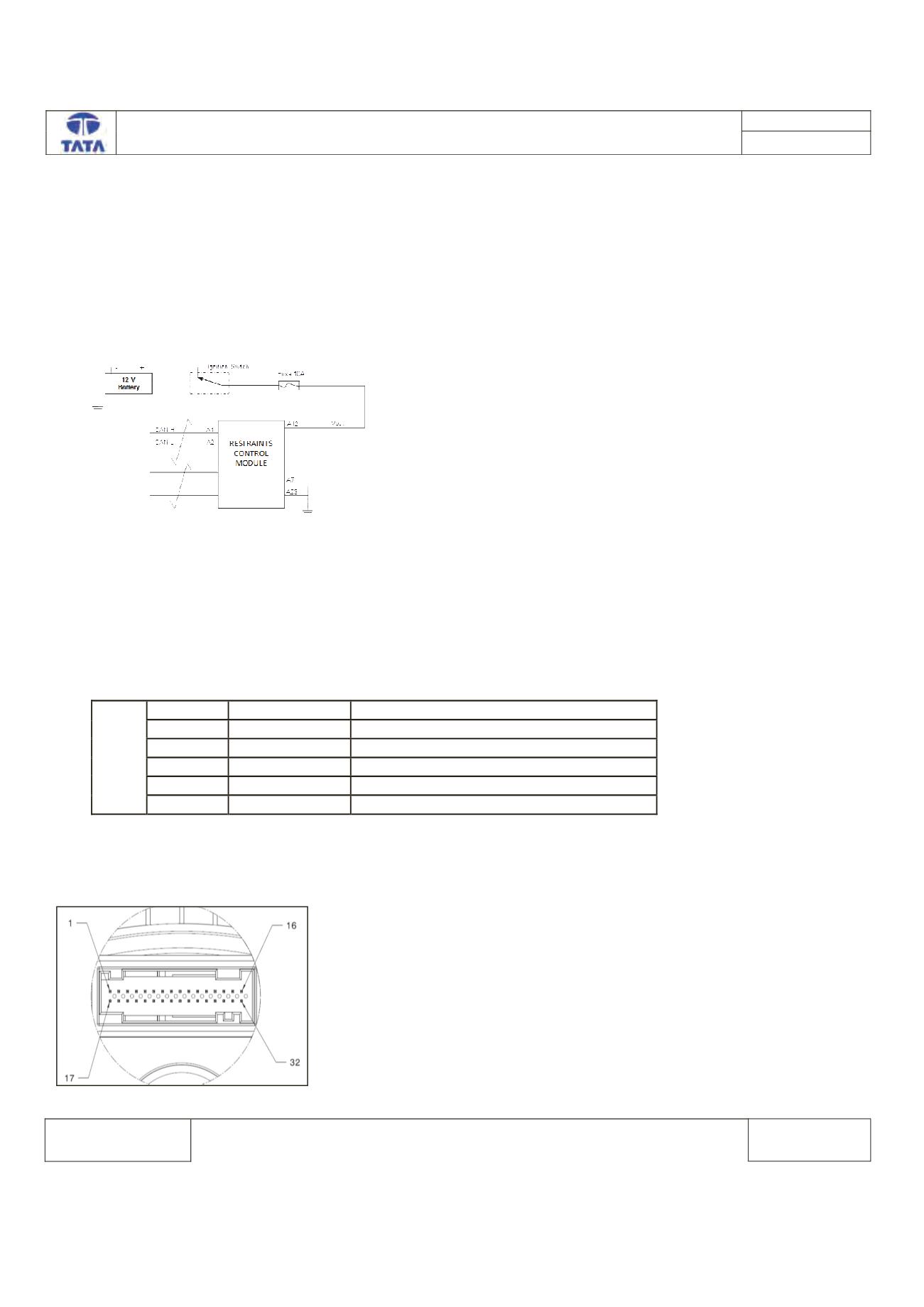

Circuit Schematic Diagram:-
SRS ECU side Connector:
Component Location & Image:-
N.A
Connector Location:-
N.A
SRS ECU Pin assignment:-
, D Z
Pin No.
Pin Name
Description
1
CAN_H
CAN High
2
CAN_L
CAN Low
7
A_GND
Common Switch GND
12
Vbat
Supply Voltage Battery
23
GND
Power GND
Connector View & Information:-
IPC ECU side connector diagram
