TML Park Distance Controller (PDC) ECU DTC
Troubleshooting guide for Nexon
Version: 0.2
Date: 08Jun17
Author:
Ravi Teja
Page: 86 of 123
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of
author.
Circuit Schematic Diagram:-
Component Location & Image:- N.A
Connector Location: N.A
Inspection Method: - N.A
Connector View & Information: -

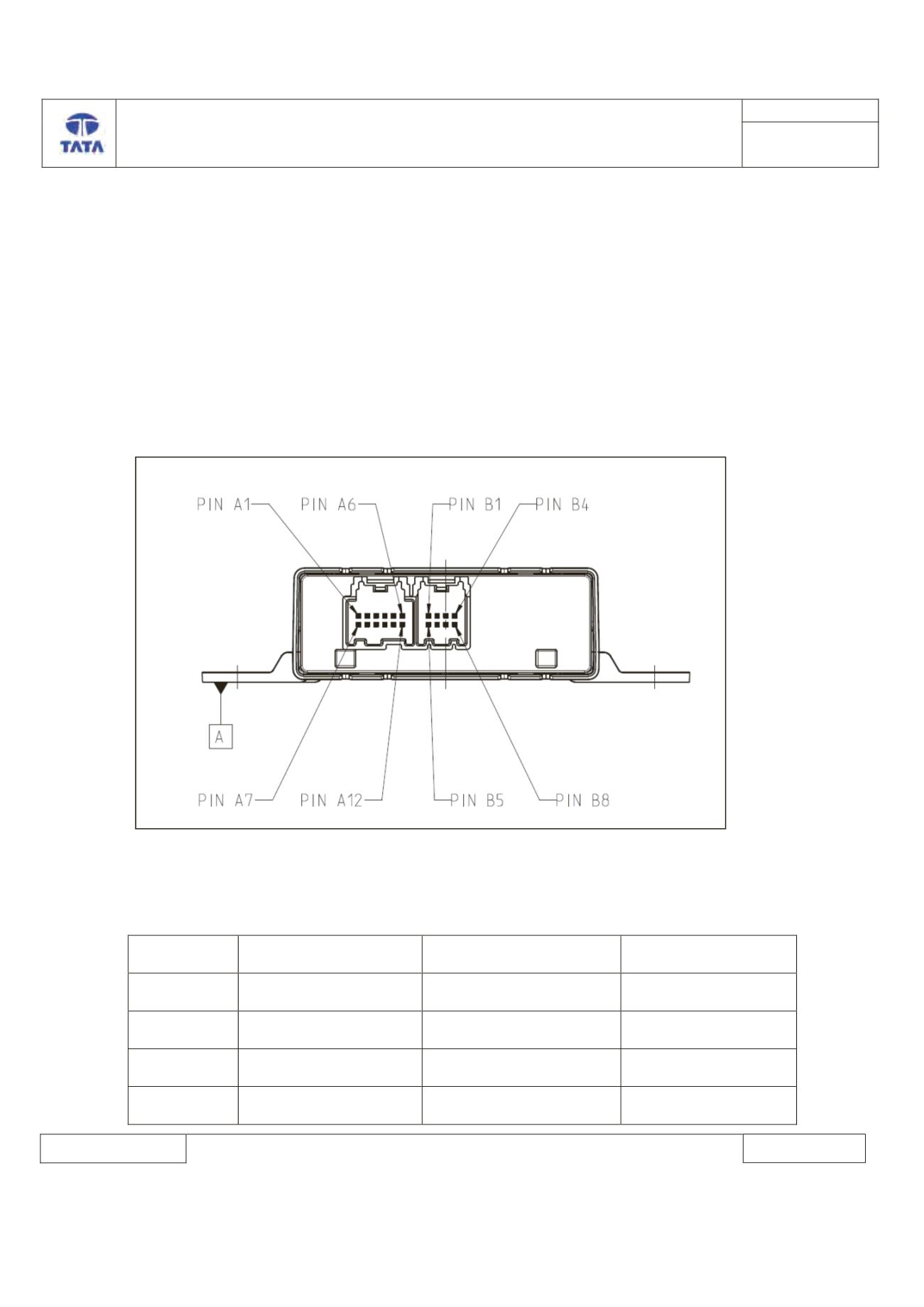

PDC ECU side connector diagram
PACM ECU pin details:-
Connector
Chamber
Description
Pin
P2
A
CAN_H
9
P2
A
CAN_L
10
P2
A
Ignition input
7
P2
A
Battery ground
12
