PSCM
DTC Troubleshooting Guide for Nexon
Version: 1.1
Date: 21/06/2017
Author: E&E Chassis - ERC
Page: 46 of 156
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

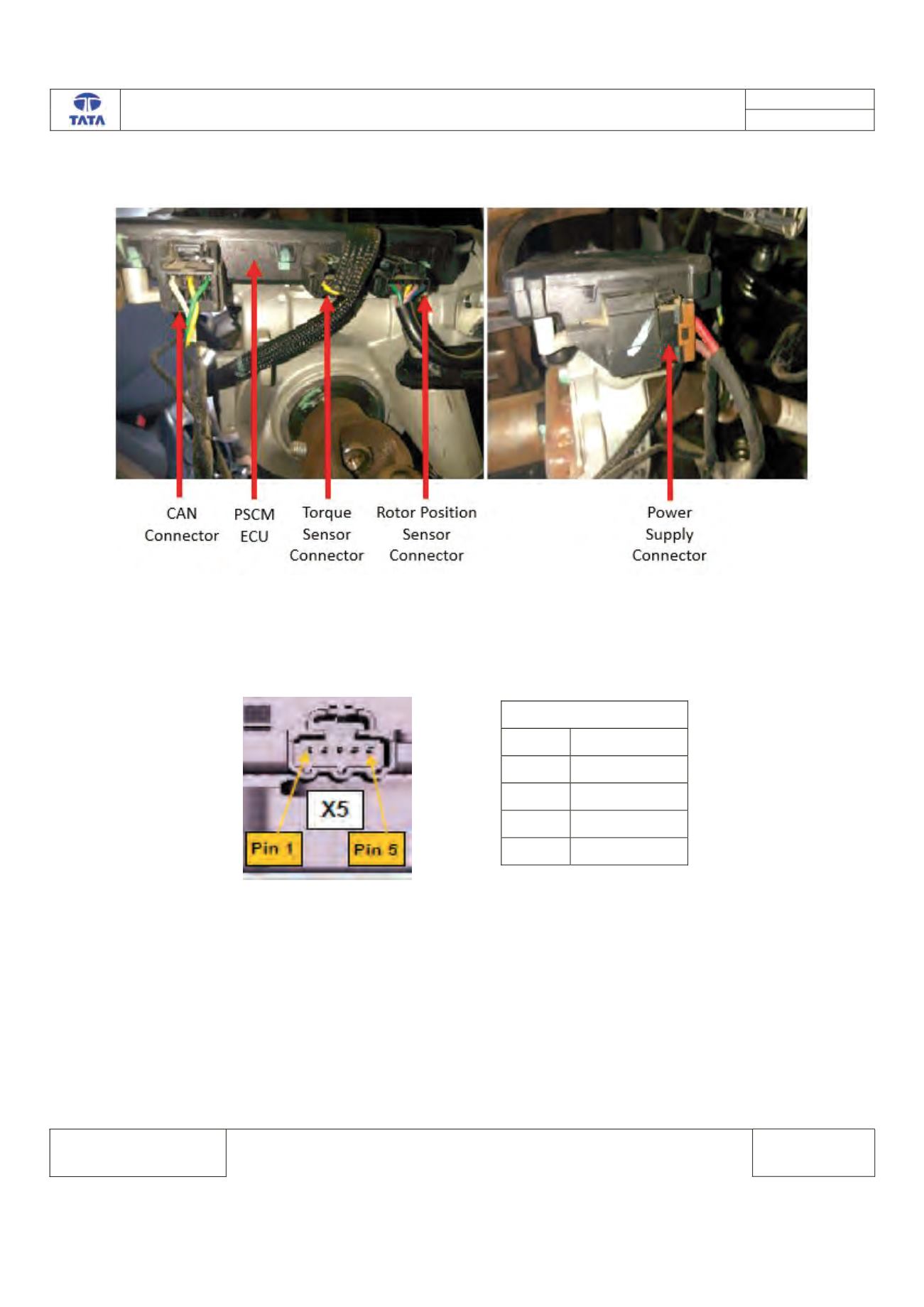

Component Location & Image:
ECU is mounted on steering column under the dashboard.
Connector Location:
Shown above
Connector View & Information:
(Below shown view is from ECU side)
Inspection Method:
NA
Torque sensor connector
Pin1
Signal_B
Pin2
GND
Pin3
VDD
Pin4
Index
Pin5
Signal_A
