PSCM
DTC Troubleshooting Guide for Nexon
Version: 1.1
Date: 21/06/2017
Author: E&E Chassis - ERC
Page: 51 of 156
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

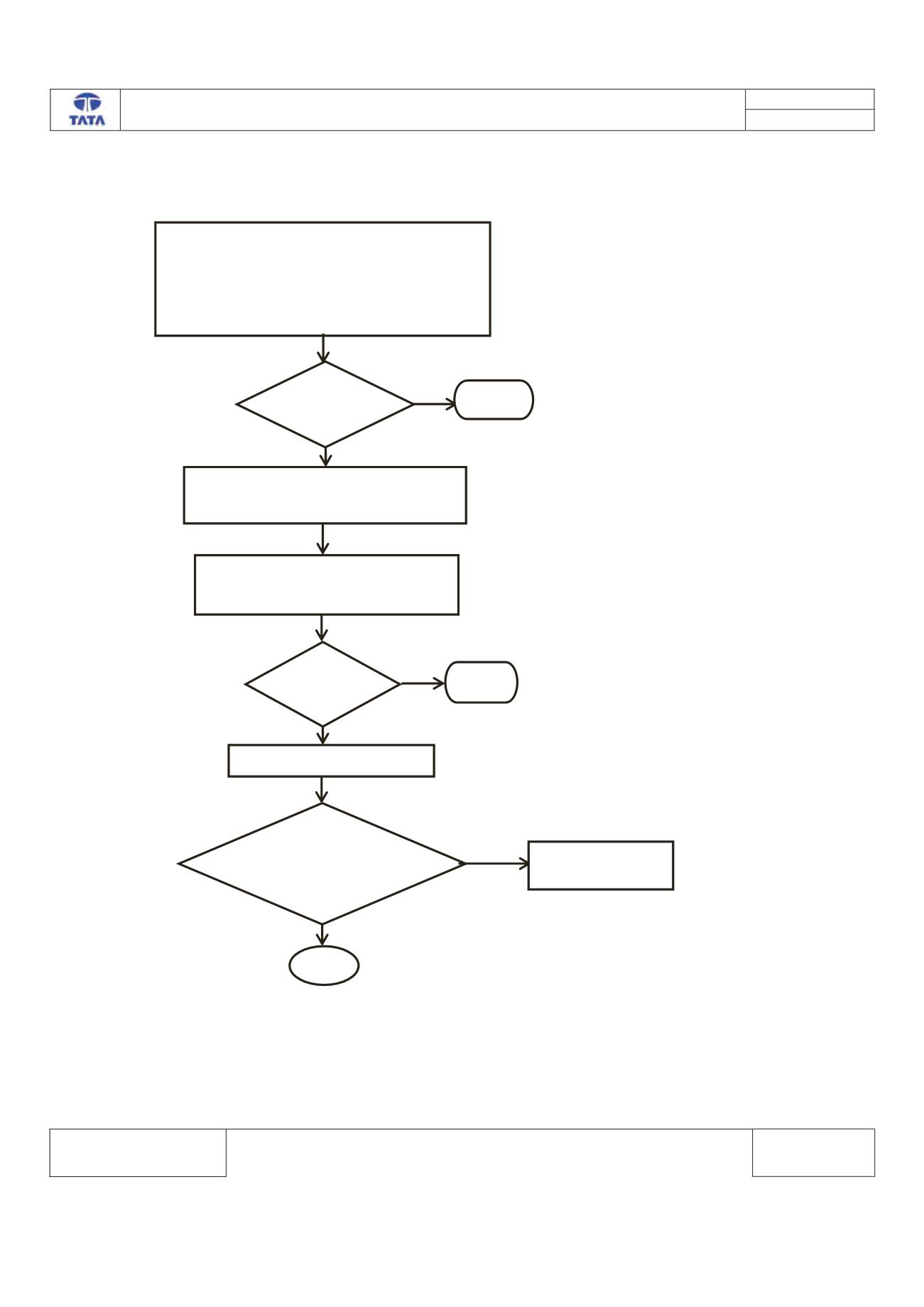

Trouble Shooting:
YES
CALIBRATE STEERING ANGLE SENSOR USING
CALIBRATION ROUTINE
CHECK FOR SOFTWARE UPDATE
YES
1. CLEAR THE DTC FROM THE MEMORY
2. TURN THE IGNITION SWITHCH OFF & ON
3. CHECK THE DTC
IS DTC
PRESENT
NO
STOP
IS THERE ANY NEW
UPDATED
SOFTWARE?
NO
REPALCE THE
STEERING COLUMN
A
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C1315-54 IS PRESENT
IS DTC
PRESENT?
Yes
No
STOP
