NEXON DIAGNOSTIC MANUAL

yϭϬϰ KƐƉƌĞǇ /ŶƐƚƌƵŵĞŶƚ ůƵƐƚĞƌ

d dƌŽƵďůĞƐŚŽŽƚŝŶŐ ĂƚĂ

sĞƌƐŝŽŶ͗ ϭ͘ϯ

ĂƚĞ͗ ϮϬͲDĂƌĐŚͲϭϳ

Author: Balaji / Amar /

Nitin / Umapathi /

Deepak

Page: 25 of 138

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

DTC’s confirmation:-

After rectification, ensure the following points before handing over the system to the customer.

a) Fuel level bars shall do the 4sec welcome strategy on display when ignition key is ON.

b) Fuel bars shall be displayed

the input resistance given in calibration table.

c) Check also in vehicle driving condition & check the FLS input change in Bars.

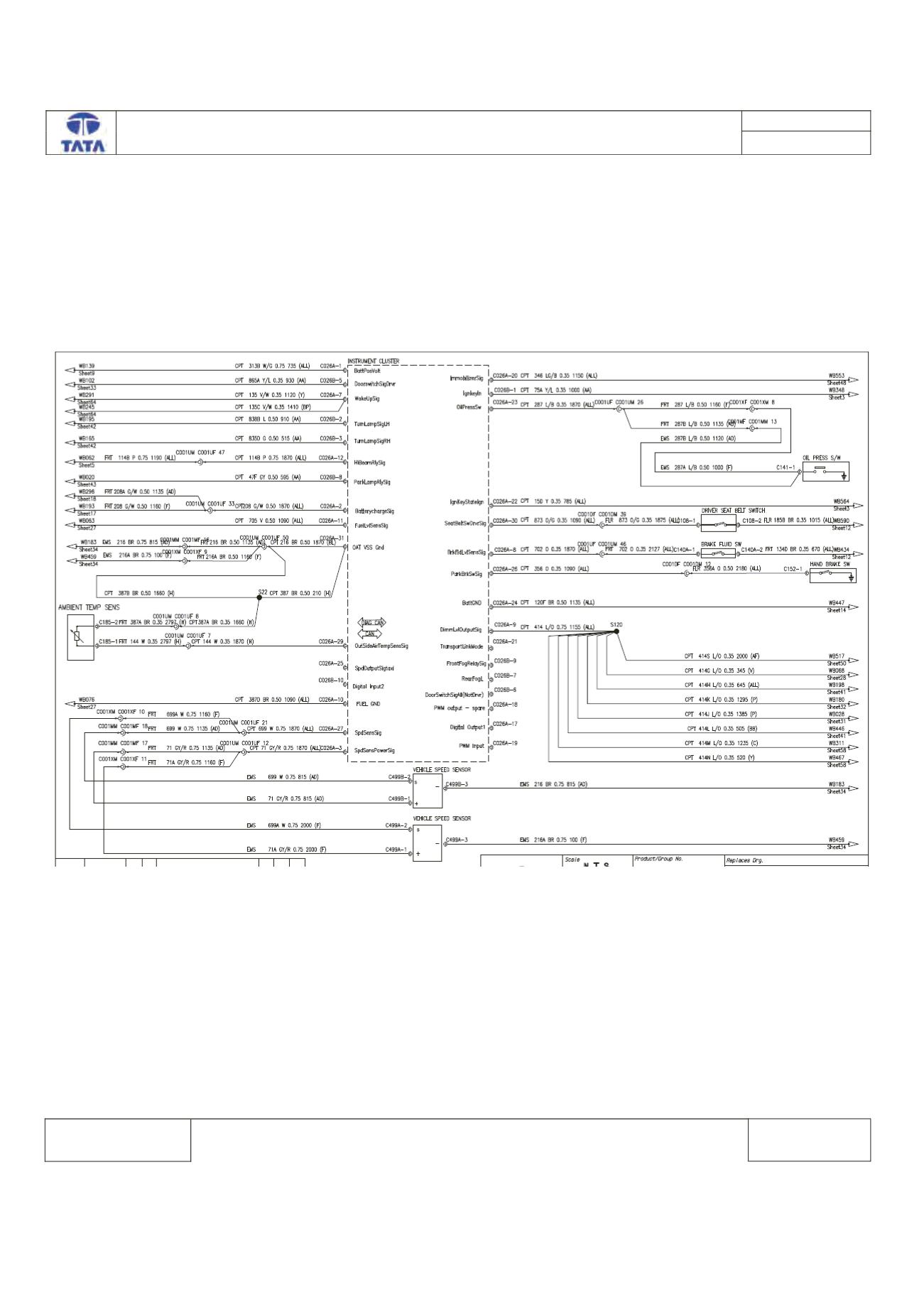

Circuit Schematic Diagram:-
