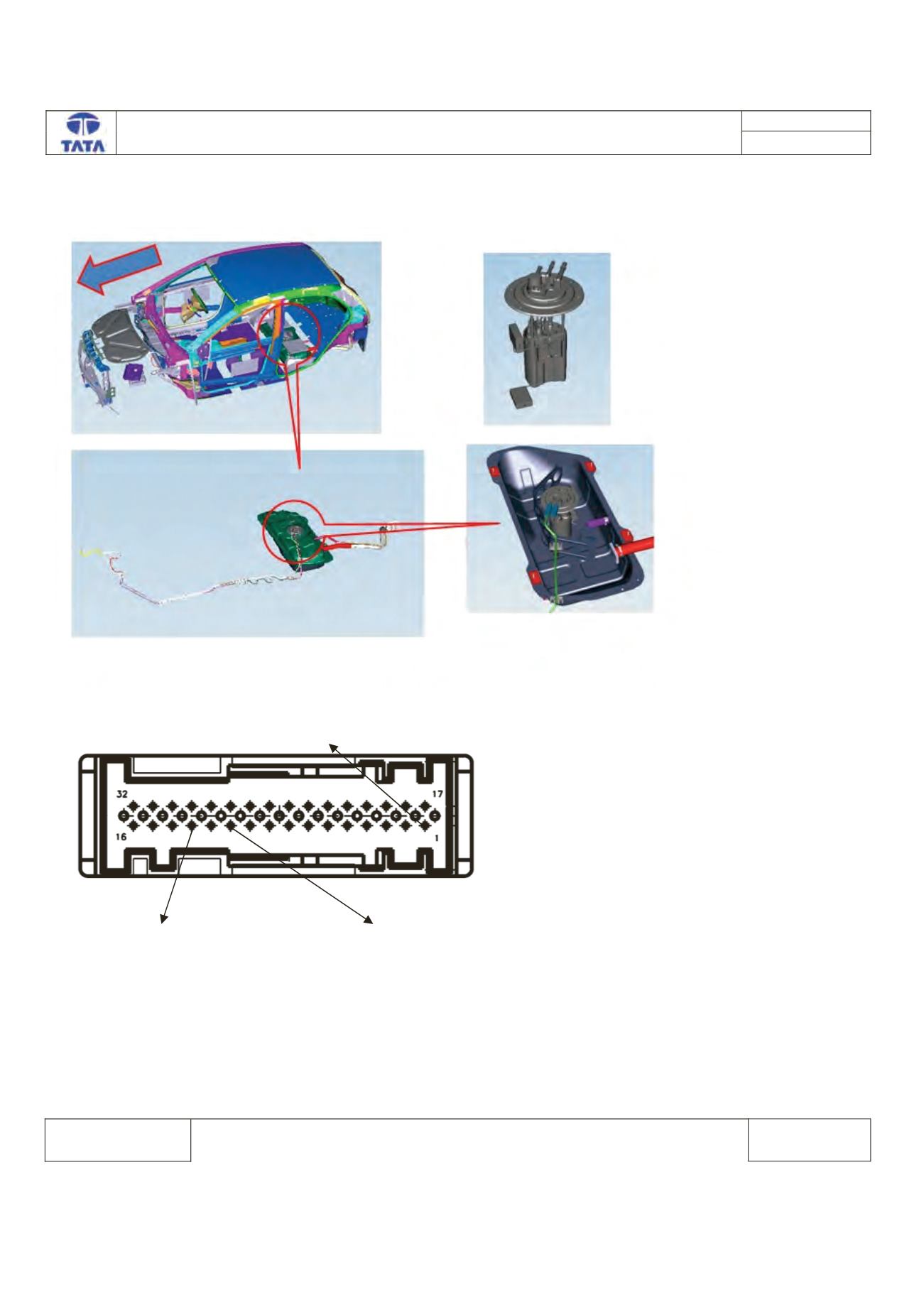

Component Location & Image:-
FLS sensor is located below Passengers seat & above the Fuel level tank.
Connector View & Information: -
Battery + (Pin no. J1-1)
FLS Sig Gnd (Pin no.J1-24)
FLS Signal Input (Pin.No.J1-11)
Inspection Method:-
Check the FLS sensor input to the cluster in Ohms through Multi meter.
