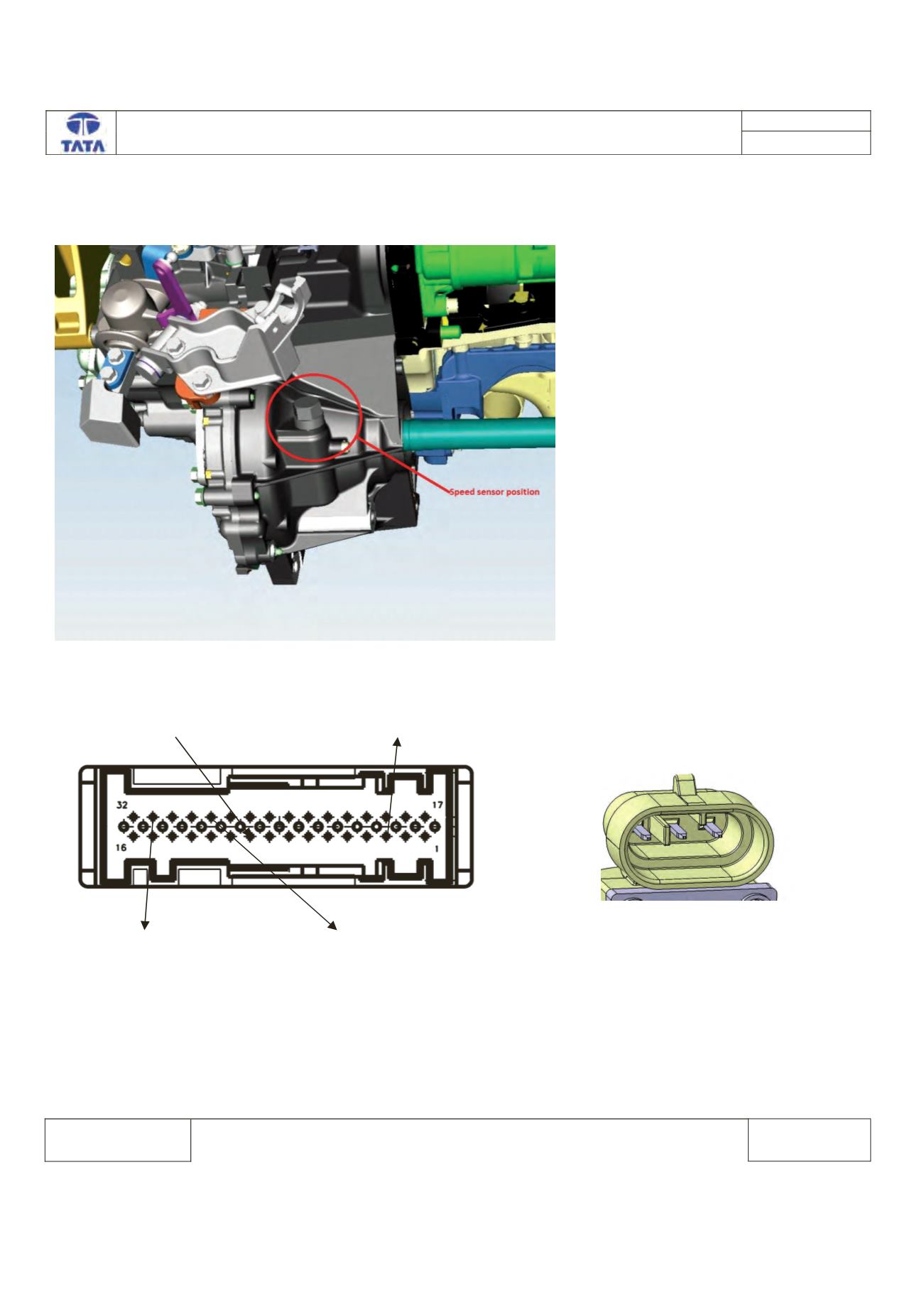

Component Location & Image:-
VSS sensor is mounted on Transmission wheel base.
Connector View & Information: -
Batt Gnd (Pin no. J1-10)
VSS Gnd (Pin no. J1-31)
VSS Sig i/p (Pin no. J1-27)
VSS Connector
Inspection Method: -
Check the continuity of the connector pins through multimeter.
VssPwr Pin No. J1-3
